MAL210117473E3
Capacitors

MAL210128153E3

Active
Vishay Dale

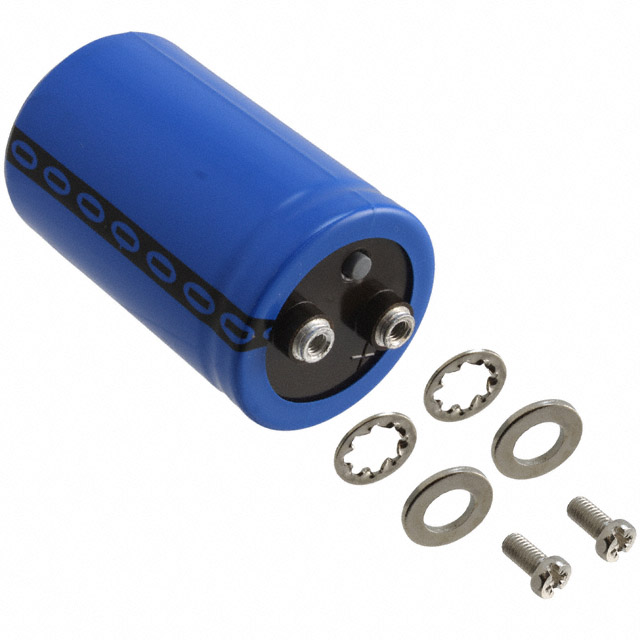

ELECTROLYTIC CAPACITOR, 101 PHR-ST SERIES, 15000 F, 20%, 63 V, 50 MM, 0.019 OHM

MAL210117473E3
Capacitors

MAL210128153E3

Active
Vishay Dale

ELECTROLYTIC CAPACITOR, 101 PHR-ST SERIES, 15000 F, 20%, 63 V, 50 MM, 0.019 OHM

Technical Specifications

Parameters and characteristics for this part

SpecificationMAL210128153E3
ApplicationsGeneral Purpose
Capacitance15000 µF
ESR (Equivalent Series Resistance)16 mOhm
Height - Seated (Max)3.496 in
Impedance11 mOhms
Lead Spacing0.874 in
Lifetime10000 Hrs
Mounting TypeChassis Mount
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Package / CaseCan - Screw Terminals, Radial
PolarizationPolar
Ripple Current12.1 A
Size / Dimension Diameter1.969 in
Tolerance20 %
Voltage - Rated63 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$Updated
DigikeyBulk 150$ 30.92<6d
NewarkEach 100$ 29.4530d+
250$ 29.01
500$ 28.34
1000$ 27.24
RS GroupSpecial/Small Minimum Order (SSM) 1$ 32.423w
5$ 31.45

CAD

3D models and CAD resources for this part

Description

General part information

MAL210128153E3

15000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 16mOhm @ 100Hz 10000 Hrs @ 85°C
