COM-10440

Active

SparkFun Electronics

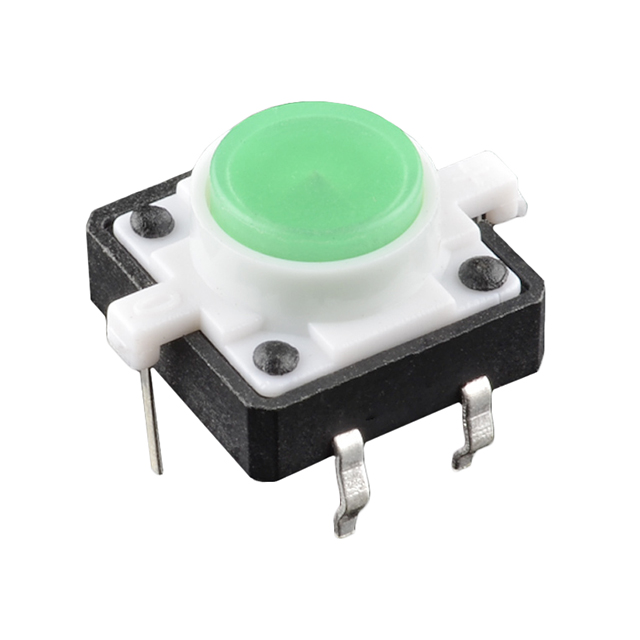

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

COM-10440

Active

SparkFun Electronics

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.25

Description

General part information

- Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	COM-10440	- Series

1st Connector Mounting Type	-	Free Hanging (In-Line)
1st Connector Type	-	HDMI-A Male
2nd Connector Mounting Type	-	Free Hanging (In-Line)
2nd Connector Type	-	Micro HDMI-D Male, Mini HDMI-C Male
Actuator Height off PCB, Vertical	6.5 mm	6.5 - 8.5 mm
Actuator Height off PCB, Vertical	-	7 mm
Actuator Orientation	Top Actuated	Top Actuated, Side Actuated
Actuator Type	Round Button	Standard, Plunger for Cap, Round Button, Rectangular Button
Body Finish	-	Gold
Body Material	-	Copper Alloy
Cable Type	-	Round
Center Contact Material	-	Copper Alloy
Center Contact Plating	-	Gold
Circuit	SPST-NO	SPST-NO
Color	-	Red
Connector Style	-	Mini, UHF
Connector Type	-	Male Pin, Receptacle
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Contact Termination	-	Solder
Current Rating (Amps)	-	50 mA
Fastening Type	-	Snap-On
Frequency - Max	-	6000 MHz
Housing Color	-	Gold
Illumination	Illuminated	Non-Illuminated, Illuminated
Illumination Type, Color	LED, Green	LED, Green, Orange, White
Impedance	-	50 Ohms
Length	-	3.3 ft
Length	-	1 m
Length	-	3 ft
Length	-	914.4 mm
Mechanical Life	100000 Cycles	100000 - 200000 Cycles
Mounting Type	Through Hole	Through Hole, Surface Mount, Through Hole, Right Angle
Number of Ports	-	1
Operating Force	150 gf	150 gf
Operating Force	-	130 - 160 gf
Operating Force	-	240 - 250 gf
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Operating Temperature [Max] [custom]	158 °F	158 °F
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Outline [x]	12 mm	5.2 - 12 mm
Outline [y]	12 mm	5.2 - 12 mm
Output	-	Digital (Mechanical Switch)
Shield Termination	-	Solder
Shielding	-	Shielded, Unshielded
Switch Function	Off-Mom	Off-Mom, 4-Way Directional, Center Select
Switch Travel	0.25 mm	0.25 - 0.35 mm
Termination Style	PC Pin	PC Pin, Gull Wing, J Lead
Type	-	2 Axis
Type	-	Navigation Switch
Usage	-	High Definition Multimedia Interface
Voltage Rating	-	60 VDC
Voltage Rating - DC	-	12 V

- Series

SWITCH TACTILE SPST-NO

Part	Circuit	Actuator Type	Outline [y]	Outline [x]	Mounting Type	Illumination	Termination Style	Actuator Orientation	Switch Function	Contact Rating @ Voltage	Mechanical Life	Switch Travel	Operating Force [Min]	Operating Force [Max]	Actuator Height off PCB, Vertical	Voltage Rating - DC	Output	Type	Type	Current Rating (Amps)	2nd Connector Type	1st Connector Mounting Type	1st Connector Type	Cable Type	Length	Length	2nd Connector Mounting Type	Shielding	Color	Operating Force	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Illumination Type, Color	Actuator Height off PCB, Vertical [z]
SparkFun Electronics COM-09190	SPST-NO	Standard	12 mm	12 mm	Through Hole	Non-Illuminated	PC Pin	Top Actuated	Off-Mom
SparkFun Electronics COM-08720	SPST-NO	Standard	5.2 mm	5.2 mm	Surface Mount	Non-Illuminated	Gull Wing	Top Actuated	Off-Mom	0.05 A, 12 VDC	100000 Cycles	0.25 mm	160 gf	250 gf
SparkFun Electronics COM-12993	SPST-NO	Standard	12 mm	12 mm	Surface Mount	Non-Illuminated	Gull Wing	Top Actuated	Off-Mom	0.05 A, 12 VDC	200000 Cycles	0.35 mm			8.5 mm
SparkFun Electronics COM-10063		Plunger for Cap			Surface Mount		J Lead		4-Way Directional, Center Select				130 gf	240 gf		12 V	Digital (Mechanical Switch)	2 Axis	Navigation Switch	50 mA
SparkFun Electronics CAB-15796																					Micro HDMI-D Male	Free Hanging (In-Line)	HDMI-A Male	Round	3.3 ft	1 m	Free Hanging (In-Line)	Shielded	Red
SparkFun Electronics COM-00097	SPST-NO	Standard			Through Hole	Non-Illuminated	PC Pin	Top Actuated	Off-Mom
SparkFun Electronics DD-15326	SPST-NO	Round Button	11.5 mm	11.7 mm	Through Hole	Non-Illuminated	PC Pin	Top Actuated	Off-Mom
SparkFun Electronics COM-10440	SPST-NO	Round Button	12 mm	12 mm	Through Hole	Illuminated	PC Pin	Top Actuated	Off-Mom	0.05 A, 12 VDC	100000 Cycles	0.25 mm			6.5 mm															150 gf	-10 °C	158 °F	Green, LED
SparkFun Electronics COM-10441	SPST-NO	Round Button	12 mm	12 mm	Through Hole	Illuminated	PC Pin	Top Actuated	Off-Mom	0.05 A, 12 VDC	100000 Cycles	0.25 mm			6.5 mm															150 gf	-10 °C	158 °F	LED, Orange
SparkFun Electronics COM-12992	SPST-NO	Standard	6 mm	6 mm	Surface Mount	Non-Illuminated	Gull Wing	Top Actuated	Off-Mom																									7 mm
