Description
General part information

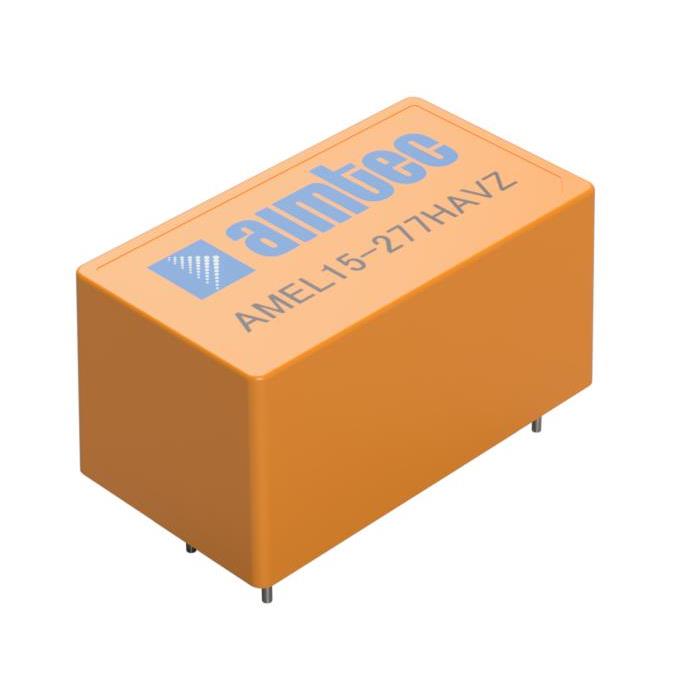

AMEL15-5S277HAVZ-ST
Enclosed AC DC Converters 1 Output 5V 85 ~ 305 VAC, 100 ~ 430 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AMEL15-5S277HAVZ-ST |
|---|---|
| Applications | Medical, ITE (Commercial), Household Appliances |
| Approval Agency | cURus, CE, cULus |
| Current - Output 1 | 3 A |
| Efficiency | 85 % |
| Features | Universal Input, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 15 W |
| Size / Dimension Height | 1.27 in |
| Size / Dimension Length | 2.99 in |
| Size / Dimension Width | 1.24 in |
| Standard Number | 60601-1, 62368-1, 60335-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 100 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 5 V |
