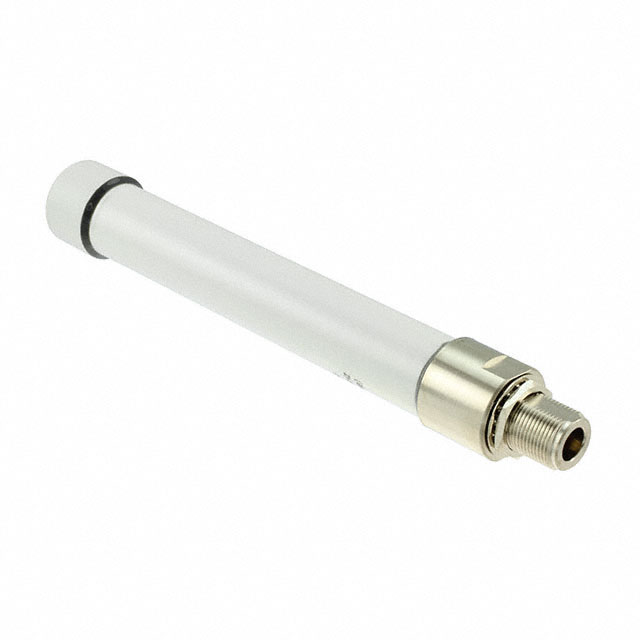

RO5806NF
ActivePulse Electronics
ANTENNA OMNI-DIRECTIONAL 6DBI GAIN 5875MHZ
RO5806NF
ActivePulse Electronics
ANTENNA OMNI-DIRECTIONAL 6DBI GAIN 5875MHZ
Description
General part information
RO5806NF
RF ANTENNA LTE Whip, Straight N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RO5806NF |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | LTE |
| Frequency (Center/Band) | 5.8 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5875 MHz |
| Frequency Range (Min) | 5.725 GHz |
| Gain | 6 dBi |
| Height (Max) | 6.75 in |
| Ingress Protection | IP67 |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 20 W |
| RF Family/Standard | Cellular |
| Termination | N Type Female |
| VSWR | 2 |
