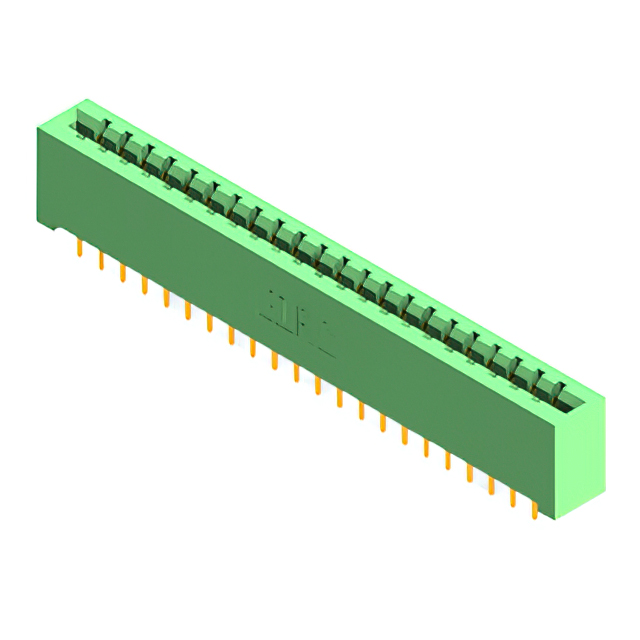

Specification	337-044-521-201

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	22, 44
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

337-044 Series

...

Part	Card Thickness (Min)	Card Thickness (Max)	Card Type	Contact Finish	Read Out	Pitch	Number of Positions	Termination	Number of Rows	Gender	Color	Features	Contact Material	Flange Feature Diameter	Flange Feature	Contact Finish Thickness	Contact Type	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Termination Rows	Material - Insulation
EDAC Inc. 337-044-555-803	0.054 in	0.07 in	Dual Edge Non Specified	Gold	Dual	0.156 in	22 44	Solder Eyelet(s)	2	Female	Green	Card Extender	Copper Alloy	0.116 in	Floating Bobbin Top Mount Opening	10 Ąin	Cantilever	Board Edge Straddle Mount	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 337-044-556-802	0.054 in	0.07 in	Dual Edge Non Specified	Gold	Dual	0.156 in	22 44	Solder	2	Female	Green	Card Extender	Copper Alloy	0.128 in	Top Mount Opening Unthreaded	10 Ąin	Cantilever	Board Edge Straddle Mount	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 337-044-520-202	0.054 in	0.07 in	Dual Edge Non Specified	Gold	Dual	0.156 in	22 44	Solder	2	Female	Green		Copper Alloy	0.128 in	Flush Mount Top Opening Unthreaded	10 Ąin	Cantilever	Through Hole	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 337-044-521-808	0.054 in	0.07 in	Dual Edge Non Specified	Gold	Dual	0.156 in	22 44	Solder	2	Female	Green		Copper Alloy		4-40 Threaded Insert Top Mount Opening	10 Ąin	Cantilever	Through Hole	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 337-044-559-802	0.054 in	0.07 in	Dual Edge Non Specified	Gold	Dual	0.156 in	22 44	Wire Wrap	2	Female	Green		Copper Alloy	0.128 in	Top Mount Opening Unthreaded	10 Ąin	Cantilever	Right Angle Through Hole	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 337-044-542-202	0.054 in	0.07 in	Dual Edge Non Specified	Gold	Dual	0.156 in	22 44	Wire Wrap	2	Female	Green		Copper Alloy	0.128 in	Flush Mount Top Opening Unthreaded	10 Ąin	Cantilever	Through Hole	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 337-044-555-203	0.054 in	0.07 in	Dual Edge Non Specified	Gold	Dual	0.156 in	22 44	Solder Eyelet(s)	2	Female	Green	Card Extender	Copper Alloy	0.116 in	Floating Bobbin Flush Mount	10 Ąin	Cantilever	Board Edge Straddle Mount	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 337-044-500-204	0.054 in	0.07 in	Dual Edge Non Specified	Gold	Dual	0.156 in	22 44	Solder Eyelet(s)	2	Female	Green		Copper Alloy	0.156 in	Flush Mount Top Opening Unthreaded	10 Ąin	Cantilever	Through Hole	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 337-044-556-207	0.054 in	0.07 in	Dual Edge Non Specified	Gold	Dual	0.156 in	22 44	Solder	2	Female	Green	Card Extender	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening	10 Ąin	Cantilever	Board Edge Straddle Mount	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 337-044-520-804	0.054 in	0.07 in	Dual Edge Non Specified	Gold	Dual	0.156 in	22 44	Solder	2	Female	Green		Copper Alloy	0.156 in	Top Mount Opening Unthreaded	10 Ąin	Cantilever	Through Hole	-40 °C	105 °C	2 rows	Polyester Thermoplastic
