EV_ICM-20600

Active

TDK InvenSense

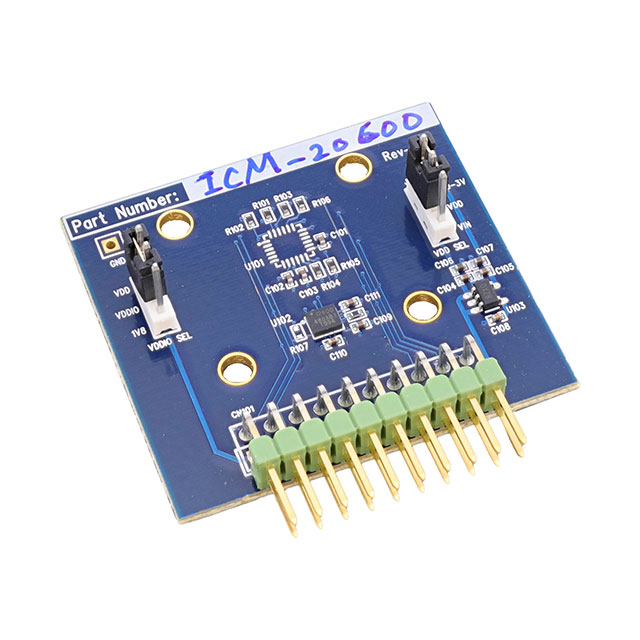

EVALUATION BOARD, ICM-20600, TRIPLE AXIS GYROSCOPE AND ACCELEROMETER

Search across all available documentation for this part.

Active

TDK InvenSense

EVALUATION BOARD, ICM-20600, TRIPLE AXIS GYROSCOPE AND ACCELEROMETER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EV_ICM-20600	EV_ICM Series

Contents	-	Board(s)
Interface	Serial, I2C, SPI	Serial, I2C, SPI
Sensing Range	500 °/sec, 8 g, 250 °/sec, 2000 °/sec, 4 g, 2 g, 16 g, 1000 °/sec	2 - 2000 °/sec
Sensing Range	-	-4900 - -2 °/sec
Sensing Range	-	2 - 4900 °/sec
Sensor Type	Accelerometer, 3 Axis, Gyroscope	Accelerometer, 3 Axis, Gyroscope, Magnetometer
Supplied Contents	Board(s)	Board(s)
Utilized IC / Part	ICM-20600	ICM-20689, ICM-20948, ICM-20609, ICM-20601, ICM-20600
Voltage - Supply [Max]	3.45 V	3.45 V
Voltage - Supply [Min]	1.71 V	1.71 V

ICM-20689 EVALUATION BOARD

Part	Utilized IC / Part	Sensing Range	Interface	Supplied Contents	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Contents	Sensing Range [Min]	Sensing Range [Max]
TDK InvenSense EV_ICM-20689	ICM-20689	2 g, 4 g, 8 g, 16 g, 250 °/sec, 500 °/sec, 1000 °/sec, 2000 °/sec	I2C, Serial, SPI	Board(s)	3.45 V	1.71 V	3 Axis, Accelerometer, Gyroscope
TDK InvenSense EV_ICM-20948	ICM-20948	4 g, 8 g, 16 g					Accelerometer, Gyroscope, Magnetometer	Board(s)	-4900 µT, -2000 °/sec, -1000 °/sec, -500 °/sec, -250 °/sec, -2 g	2 g, 250 °/sec, 500 °/sec, 1000 °/sec, 2000 °/sec, 4900 µT
TDK InvenSense EV_ICM-20609	ICM-20609	2 g, 4 g, 8 g, 16 g, 250 °/sec, 500 °/sec, 1000 °/sec, 2000 °/sec	I2C, Serial, SPI	Board(s)	3.45 V	1.71 V	3 Axis, Accelerometer, Gyroscope	Board(s)
TDK InvenSense EV_ICM-20601	ICM-20601	8 g, 16 g, 32 g, 1000 °/sec, 2000 °/sec	I2C, Serial, SPI	Board(s)	3.45 V	1.71 V	3 Axis, Accelerometer, Gyroscope		-4000 °/sec, -500 °/sec, -4 g	4 g, 500 °/sec, 4000 °/sec
TDK InvenSense EV_ICM-20600	ICM-20600	2 g, 4 g, 8 g, 16 g, 250 °/sec, 500 °/sec, 1000 °/sec, 2000 °/sec	I2C, Serial, SPI	Board(s)	3.45 V	1.71 V	3 Axis, Accelerometer, Gyroscope

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.68
Newark	Each	1	$ 33.75

General part information

ICM-20600 - Accelerometer, Gyroscope, 3 Axis Sensor Evaluation Board
