RG316-100ft
ActiveMcGill Microwave Systems
RG316 COAX 100FT(30.48M)LENGTH
RG316-100ft
ActiveMcGill Microwave Systems
RG316 COAX 100FT(30.48M)LENGTH
Description
General part information
RG316-100ft

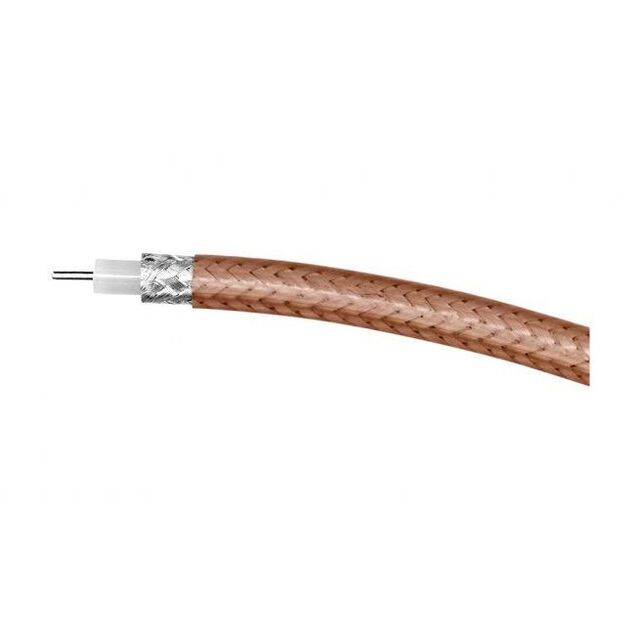

Coaxial Cable RG-316 100.0' (30.48m) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | RG316-100ft |
|---|---|
| Cable Group | RG-316 |
| Cable Type | Coaxial |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | 7 Strands / 0.0071" |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Diameter | 0.0071 in |
| Dielectric Diameter | 0.06 in |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Impedance | 50 Ohm |
| Jacket (Insulation) Diameter | 0.1 in |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket Color | Brown |
| Length | 100 ft |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| Velocity of Propagation (VoP) | 70 % |
