PTH-22450-C
ActiveBUD INDUSTRIES

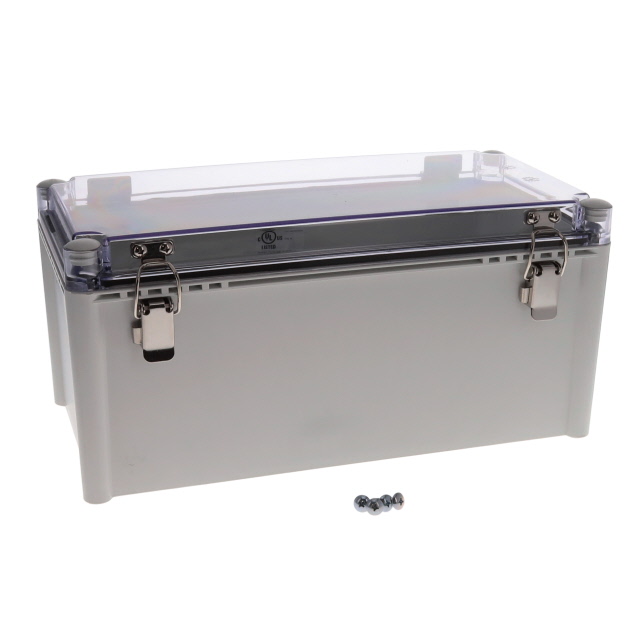

CLEAR/GREY POLYCARBONATE BRACKET MOUNT BOX
PTH-22450-C
ActiveBUD INDUSTRIES
CLEAR/GREY POLYCARBONATE BRACKET MOUNT BOX
Description
General part information
PTH-22450-C
Box Plastic, Polycarbonate (PC) Gray Hinged Door, Lid 14.960" L x 7.480" W (380.00mm x 190.00mm) X 7.090" (180.09mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PTH-22450-C |
|---|---|
| Area (L x W) | 112 in² |
| Color | Gray |
| Container Type | Box |
| Design | Lid, Hinged Door |
| Features | Sealing Gasket, Latches |
| Height | 7.09 in |
| Material | Polycarbonate (PC), Plastic |
| Material Flammability Rating | UL94 5VA |
| Material Flammability Rating - Code | UL94 |
| Material Flammability Rating - Level | 5 |
| Ratings | IP67, UL 508, NEMA 4X |
| Size / Dimension Length | 14.96 in |
| Size / Dimension Width | 7.48 in |
| Thickness | 0.12 in |
| Weight | 1.7 lbs |
