BLCR-L10D-D4

Active

Amphenol All Sensors Corporation

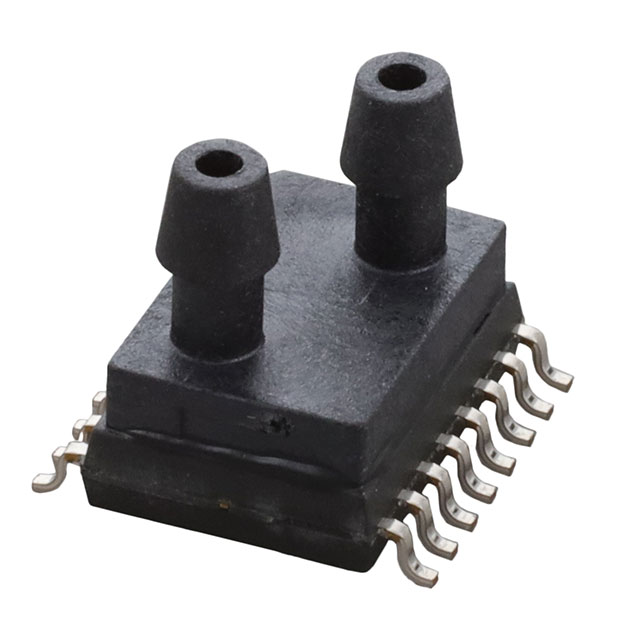

SENSOR 0.36PSID 0.12" .032V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.36PSID 0.12" .032V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BLCR-L10D-D4	BLCR-L10D Series

Accuracy	0.5 %	0.5 %
Applications	Board Mount	Board Mount
Maximum Pressure [Max]	7.25 PSI	7.25 PSI
Maximum Pressure [Max]	50 kPa	50 kPa
Mounting Type	Surface Mount	Surface Mount
Operating Pressure	2.5 kPa	2.5 kPa
Operating Pressure	0.36 PSI	0.36 PSI
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output [Max]	32 mV	32 mV
Output [Min]	0 mV	0 mV
Output Type	Analog Voltage	Analog Voltage
Package / Case	16-SOIC Module, Dual Top Ports	6-SMD, Gull Wing, Top Port, 16-SOIC Module, Dual Top Ports
Port Size	0.12 "	0.12 "
Port Size	Male, Tube, Dual	Male - Tube, Male, Tube, Dual
Port Size	3 mm	0.12 - 3 mm
Port Style	Barbed	Barbless, Barbed
Pressure Type	Differential	Gauge, Differential
Termination Style	Gull Wing	Gull Wing
Voltage - Supply [Max]	3.3 V	3.3 V
Voltage - Supply [Min]	1.8 V	1.8 V

SENSOR 0.36PSIG 0.12" .032V

Part	Operating Pressure	Operating Pressure	Port Style	Mounting Type	Pressure Type	Applications	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Termination Style	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Output [Min]	Output [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Port Size	Port Size	Port Size
Amphenol All Sensors Corporation BLCR-L10D-U2	2.5 kPa	0.36 PSI	Barbless	Surface Mount	Gauge	Board Mount	6-SMD, Gull Wing, Top Port	-25 °C	85 °C	Analog Voltage	Gull Wing	0.5 %	7.25 PSI	50 kPa	0 mV	32 mV	3.3 V	1.8 V	Male - Tube	0.12 ", 3 mm
Amphenol All Sensors Corporation BLCR-L10D-D4	2.5 kPa	0.36 PSI	Barbed	Surface Mount	Differential	Board Mount	16-SOIC Module, Dual Top Ports	-25 °C	85 °C	Analog Voltage	Gull Wing	0.5 %	7.25 PSI	50 kPa	0 mV	32 mV	3.3 V	1.8 V	Dual, Male, Tube	3 mm	0.12 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor ±0.36PSI (±2.5kPa) Differential Male - 0.12" (3mm) Tube, Dual 0 mV ~ 32 mV 16-SOIC Module, Dual Top Ports
