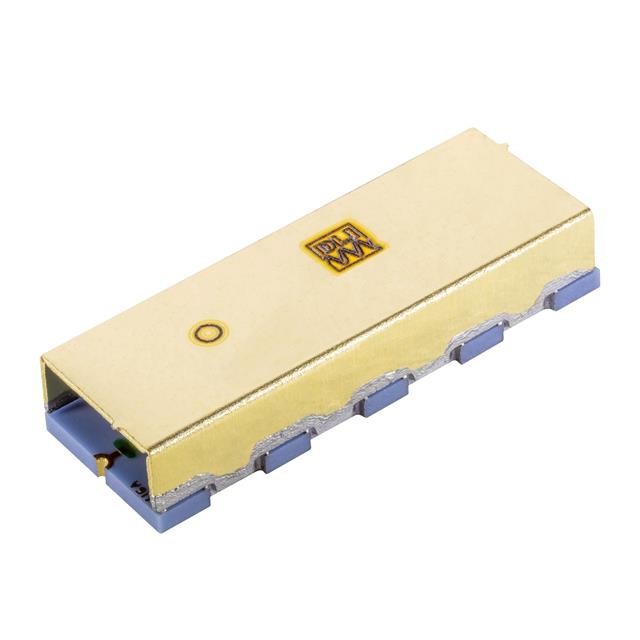

B024RF2S-T

Active

Knowles Dielectric Labs

RF FILTER BAND PASS 2.4GHZ 3SMD

Search across all available documentation for this part.

Active

Knowles Dielectric Labs

RF FILTER BAND PASS 2.4GHZ 3SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B024RF2S-T	B024RF Series

Bandwidth	1.08 GHz	1.08 GHz
Filter Type	Band Pass	Band Pass
For Use With/Related Products	-	B024RF2S
Frequency	2.4 GHz	2.4 GHz
Height (Max) [Max]	0.113 in	0.113 in
Height (Max) [Max]	2.87 mm	2.87 mm
Insertion Loss	3.5 dB	3.5 dB
Mounting Type	Surface Mount	Surface Mount
Package / Case	3-SMD, No Lead	3-SMD, No Lead
Size / Dimension [x]	0.5 in	0.5 in
Size / Dimension [x]	12.7 mm	12.7 mm
Size / Dimension [y]	6.35 mm	6.35 mm
Size / Dimension [y]	0.25 in	0.25 in
Supplied Contents	-	Board(s)
Type	-	Filter

RF FILTER BAND PASS 2.4GHZ 3SMD

Part	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency	Bandwidth	Height (Max) [Max]	Height (Max) [Max]	Insertion Loss	Filter Type	For Use With/Related Products	Type	Supplied Contents
Knowles Dielectric Labs B024RF2S-T	3-SMD, No Lead	Surface Mount	6.35 mm	0.5 in	0.25 in	12.7 mm	2.4 GHz	1.08 GHz	0.113 in	2.87 mm	3.5 dB	Band Pass
Knowles Dielectric Labs DEB-B024RF2S							2.4 GHz						B024RF2S	Filter	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.4GHz Center Frequency Band Pass RF Filter (Radio Frequency) 1.08GHz Bandwidth 3.5dB 3-SMD, No Lead

Technical documentation and resources

No documents available
