H16B-SDRH-LB-PG29

Active

TE Connectivity Raychem Cable Protection

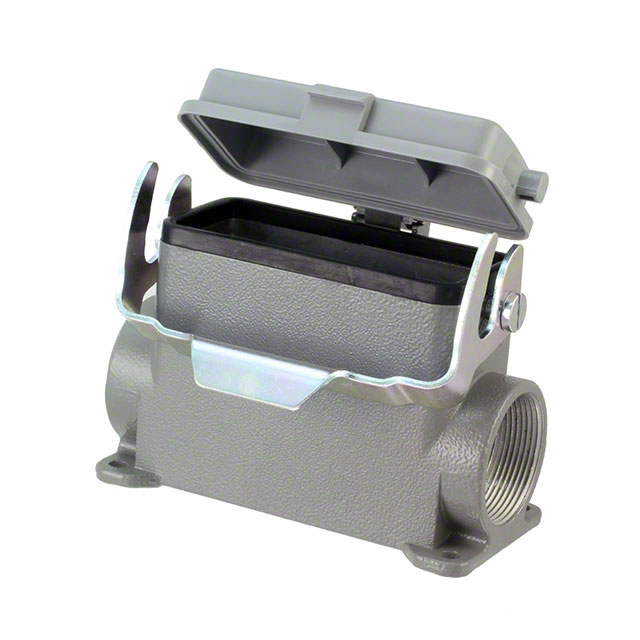

CONN BASE SIDE ENTRY SZ16B PG29

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

H16B-SDRH-LB-PG29

Active

TE Connectivity Raychem Cable Protection

CONN BASE SIDE ENTRY SZ16B PG29

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H16B-SDRH-LB-PG29

Connector Type	Base - Box Mount
Features	Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Style	Side Entry
Thread Size	PG29

H16B Series

Part	Housing Finish	Connector Type	Size	Lock Location	Housing Material	Style	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Features	Thread Size	Housing Color
TE Connectivity Raychem Cable Protection H16B-AD-BO	Powder Coated	Base - Panel Mount	16 B	Locking Clip (2) on Hood	Aluminum Alloy Die Cast	Bottom Entry	29.6 mm	45.7 mm	1.799 "	116.2 mm	4.575 in	1.165 in	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Cover
TE Connectivity Raychem Cable Protection H16B-TS-RO-M32	Powder Coated	Hood	16 B	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	Side Entry	60 mm	43 mm	1.693 in	93.5 mm	3.681 "	2.362 "	IP65 - Dust Tight Water Resistant	125 °C	-40 °C		M32	Gray
TE Connectivity Raychem Cable Protection H16B-SGRH-LB-M32	Powder Coated	Base - Box Mount	16 B	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	Side Entry							IP65 - Dust Tight Water Resistant	125 °C	-40 °C		M32	Gray
TE Connectivity Raychem Cable Protection H16B-TSBH-PG29	Powder Coated	Hood	16 B	Locking Clip (2) on Hood	Aluminum Alloy Die Cast	Side Entry	76 mm	43 mm	1.693 in	93.5 mm	3.681 "	2.992 in	IP65 - Dust Tight Water Resistant	125 °C	-40 °C		PG29	Gray
TE Connectivity Raychem Cable Protection H16B-SDRH-BO-PG29	Powder Coated	Base - Box Mount	16 B	Locking Clip (2) on Hood	Aluminum Alloy Die Cast	Side Entry	76.1 mm	57 mm	2.244 "	117 mm	4.606 "	2.996 in	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Cover	PG29	Gray
TE Connectivity Raychem Cable Protection H16B-AG-SL	Powder Coated	Base - Panel Mount	16 B	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast	Bottom Entry	29.8 mm	45.7 mm	1.799 "	116.2 mm	4.575 in	1.173 in	IP65 - Dust Tight Water Resistant	125 °C	-40 °C			Gray
TE Connectivity Raychem Cable Protection H16B-SDRH-LB-PG29	Powder Coated	Base - Box Mount	16 B	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	Side Entry							IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Cover	PG29	Gray
TE Connectivity Raychem Cable Protection H16B-TSH-RO-PG29	Powder Coated	Hood	16 B	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	Side Entry	76 mm	43 mm	1.693 in	93.5 mm	3.681 "	2.992 in	IP65 - Dust Tight Water Resistant	125 °C	-40 °C		PG29	Gray
TE Connectivity Raychem Cable Protection H16B-SGR-PG21	Powder Coated	Base - Box Mount	16 B	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast	Side Entry	56.6 mm	57 mm	2.244 "	117 mm	4.606 "	2.228 "	IP65 - Dust Tight Water Resistant	125 °C	-40 °C		PG21	Gray
TE Connectivity Raychem Cable Protection H16B-SGRH-2M32	Powder Coated	Base - Box Mount	16 B	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast	Side Entry	76.1 mm	57 mm	2.244 "	117 mm	4.606 "	2.996 in	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Feed Through	M32	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.56
		12	$ 18.62
		30	$ 17.31
		54	$ 16.35
		102	$ 16.00
		252	$ 15.88
		504	$ 15.28

Description

General part information

H16B Series

Base - Box Mount Connector Side Entry PG29 16B IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources
