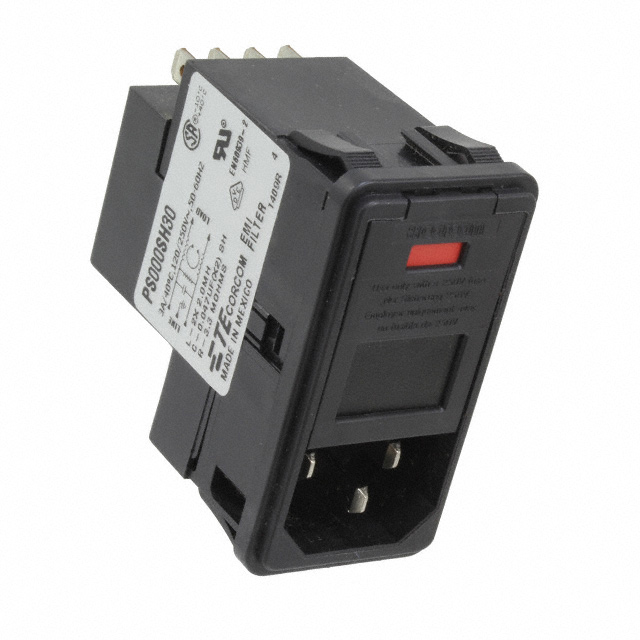

PS000SH30

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCorcom EMI/RFI Filter Selector Chart Datasheet

PS000SH30

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsCorcom EMI/RFI Filter Selector Chart Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.22
		10	$ 22.09
		25	$ 21.13
		50	$ 20.45
		100	$ 19.77
		250	$ 18.68
		500	$ 18.13

Description

General part information

PS00 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Documents

Technical documentation and resources

Corcom EMI/RFI Filter Selector Chart

Datasheet

Specification	PS000SH30	PS00 Series

Accomodates a Fuse	True	True
Applications	-	General Purpose
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Configuration	-	Single Stage
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module, Male Blades, Receptacle
Current	-	3 - 6 A
Current Rating - Appliance Inlet	10 A	3 - 10 A
Current Rating - Filter	10 A	3 - 10 A
Features	Conversion Clip	Conversion Clip, Shielded, Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Single Phase, DC, Filtered (EMI, RFI) - Commercial, Medical, Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder, Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature	-	-10 °C
Operating Temperature	-	40 °C
Panel Cutout Dimensions	Variable Size	Variable Size
Panel Thickness	-	2 mm
Panel Thickness [Max]	2.9 mm	2.11 - 2.9 mm
Panel Thickness [Max]	0.114 in	0.079 - 0.114 in
Panel Thickness [Min]	0.79 mm	0.79 mm
Panel Thickness [Min]	0.031 "	0.031 "
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Termination Style	-	Quick Connect
Voltage - Rated DC	-	80 V
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

Part

Connector Type

Connector Style

Approval Agency

Accomodates a Fuse

Fuse Holder, Drawer

Filter Type

Current Rating - Filter

Panel Thickness [Max]

Panel Thickness [Min]

Mounting Type

Current Rating - Appliance Inlet

Features

Panel Cutout Dimensions

Voltage Rating - Appliance Inlet

Termination

Termination Style

Current

Voltage - Rated DC

Configuration

Applications

Operating Temperature [Min]

Operating Temperature [Max]

Panel Thickness [Max]

TE Connectivity Corcom Filters

PS00SSSXA

Receptacle, Male Blades - Module

IEC 320-C14

CSA, UL, VDE

Fuse Holder

Filtered (EMI, RFI) - Commercial

10 A

2.9 mm

0.114 in

0.79 mm

0.031 "

Panel Mount, Snap-In

10 A

Conversion Clip, Shielded, Voltage Selector

Variable Size

120 VAC

0.187 "

4.7 mm

Quick Connect

TE Connectivity Corcom Filters

PS000SS6B

Receptacle, Male Blades - Module

IEC 320-C14

CSA, UL, VDE

Fuse Holder

Filtered (EMI, RFI) - Commercial

6 A

2.9 mm

0.114 in

0.79 mm

0.031 "

Panel Mount, Snap-In

6 A

Conversion Clip, Shielded

Variable Size

120 VAC

0.187 "

4.7 mm

Quick Connect

TE Connectivity Corcom Filters

PS000DD3D

CSA, UL, VDE

Single Phase

Quick Connect

3 A

80 V

Single Stage

General Purpose

-10 °C

40 °C

TE Connectivity Corcom Filters

PS000DD6D

CSA, UL, VDE

Quick Connect

6 A

80 V

General Purpose

-10 °C

40 °C

TE Connectivity Corcom Filters

PS000DM6E

Male Blades, Receptacle

IEC 320-C14

CSA, UL, VDE

Fuse Holder, Twin Fused

Filtered (EMI, RFI) - Commercial, Medical

6 A

0.079 "

0.79 mm

0.031 "

Panel Mount, Snap-In

6 A

Variable Size

120 VAC

Quick Connect

2 mm

TE Connectivity Corcom Filters

PS00SDH3A

Receptacle, Male Blades - Module

IEC 320-C14

CSA, UL, VDE

Fuse Holder, Twin Fused

Filtered (EMI, RFI) - Commercial, Medical

3 A

2.9 mm

0.114 in

0.79 mm

0.031 "

Panel Mount, Snap-In

3 A

Shielded, Voltage Selector

Variable Size

120 VAC

0.187 "

4.7 mm

Quick Connect

TE Connectivity Corcom Filters

PS000SH60

Receptacle, Male Blades - Module

IEC 320-C14

CSA, UL, VDE

Fuse Holder

Filtered (EMI, RFI) - Commercial, Medical

6 A

2.9 mm

0.114 in

0.79 mm

0.031 "

Panel Mount, Snap-In

6 A

Conversion Clip

Variable Size

120 VAC

0.187 "

4.7 mm

Quick Connect

TE Connectivity Corcom Filters

PS00XSS6B

Receptacle, Male Blades - Module

IEC 320-C14

CSA, UL, VDE

Fuse Holder

Filtered (EMI, RFI) - Commercial

6 A

2.9 mm

0.114 in

0.79 mm

0.031 "

Panel Mount, Snap-In

6 A

Conversion Clip, Shielded, Voltage Selector

Variable Size

120 VAC

0.187 "

4.7 mm

Quick Connect

TE Connectivity Corcom Filters

PS00SD000

Receptacle, Male Blades - Module

IEC 320-C14

CSA, UL, VDE

Fuse Holder, Twin Fused

Unfiltered - Commercial

2.11 mm

0.083 "

0.79 mm

0.031 "

Panel Mount, Snap-In

10 A

Voltage Selector

Variable Size

120 VAC

0.187 "

4.7 mm

Quick Connect

TE Connectivity Corcom Filters

PS00XSSX0

Receptacle, Male Blades - Module

IEC 320-C14

CSA, UL, VDE

Fuse Holder

Filtered (EMI, RFI) - Commercial

10 A

2.9 mm

0.114 in

0.79 mm

0.031 "

Panel Mount, Snap-In

10 A

Conversion Clip, Voltage Selector

Variable Size

120 VAC

0.187 "

4.7 mm

Quick Connect

Part	Connector Type	Connector Style	Approval Agency	Fuse Holder, Drawer	Filter Type	Current Rating - Filter	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Mounting Type	Current Rating - Appliance Inlet	Features	Panel Cutout Dimensions	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Termination Style	Current	Voltage - Rated DC	Configuration	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Panel Thickness [Max]
TE Connectivity Corcom Filters PS00SSSXA	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder	Filtered (EMI, RFI) - Commercial	10 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	10 A	Conversion Clip, Shielded, Voltage Selector	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS000SS6B	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder	Filtered (EMI, RFI) - Commercial	6 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	6 A	Conversion Clip, Shielded	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS000DD3D			CSA, UL, VDE		Single Phase														Quick Connect	3 A	80 V	Single Stage	General Purpose	-10 °C	40 °C
TE Connectivity Corcom Filters PS000DD6D			CSA, UL, VDE		DC														Quick Connect	6 A	80 V		General Purpose	-10 °C	40 °C
TE Connectivity Corcom Filters PS000DM6E	Male Blades, Receptacle	IEC 320-C14	CSA, UL, VDE	Fuse Holder, Twin Fused	Filtered (EMI, RFI) - Commercial, Medical	6 A		0.079 "	0.79 mm	0.031 "	Panel Mount, Snap-In	6 A		Variable Size	120 VAC			Quick Connect								2 mm
TE Connectivity Corcom Filters PS00SDH3A	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder, Twin Fused	Filtered (EMI, RFI) - Commercial, Medical	3 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	3 A	Shielded, Voltage Selector	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS000SH60	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder	Filtered (EMI, RFI) - Commercial, Medical	6 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	6 A	Conversion Clip	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS00XSS6B	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder	Filtered (EMI, RFI) - Commercial	6 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	6 A	Conversion Clip, Shielded, Voltage Selector	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS00SD000	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder, Twin Fused	Unfiltered - Commercial		2.11 mm	0.083 "	0.79 mm	0.031 "	Panel Mount, Snap-In	10 A	Voltage Selector	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS00XSSX0	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder	Filtered (EMI, RFI) - Commercial	10 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	10 A	Conversion Clip, Voltage Selector	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
