CGA7K1X7R3D102K130KA
ActiveTDK Corporation
CAP, AEC-Q200, 1000PF, 2KV, MLCC, 1808 ROHS COMPLIANT: YES
CGA7K1X7R3D102K130KA
ActiveTDK Corporation
CAP, AEC-Q200, 1000PF, 2KV, MLCC, 1808 ROHS COMPLIANT: YES
Description
General part information
CGA7K1X7R3D102K130KA

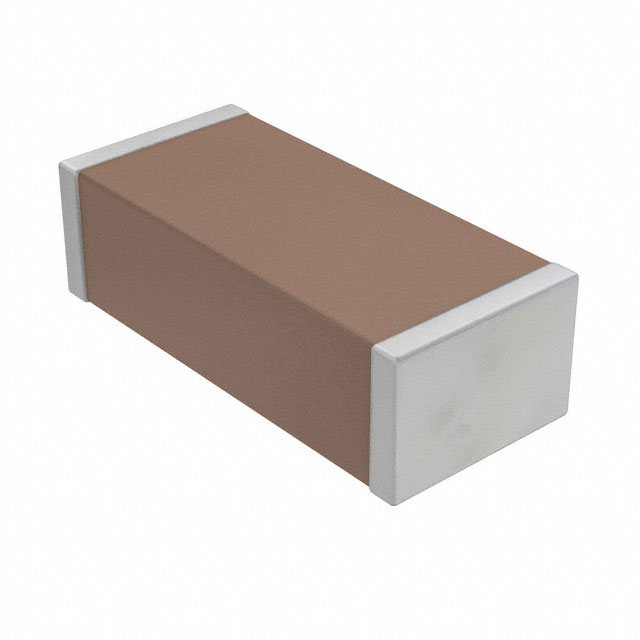

1000 pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1808 (4520 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CGA7K1X7R3D102K130KA |
|---|---|
| Applications | Automotive |
| Capacitance | 1000 pF |
| Features | High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1808 (4520 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.079 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.059 in |
| Tolerance | 10 % |
| Voltage - Rated | 2000 VAC |
