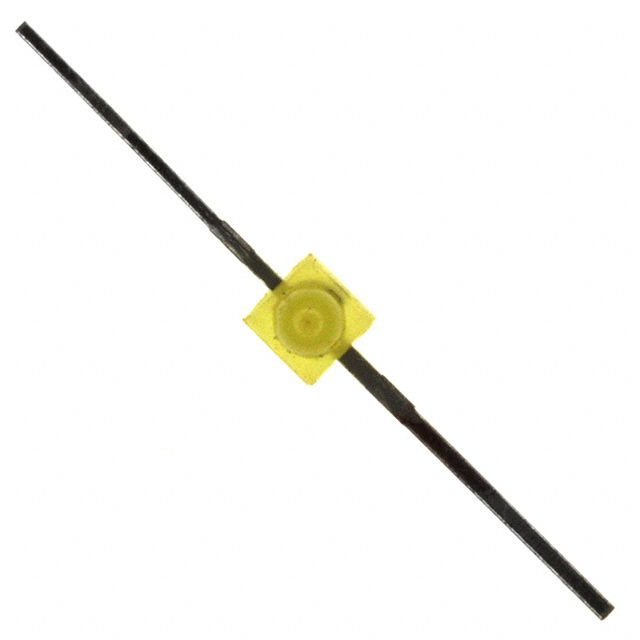

SSL-LXA227YD-5V
ObsoleteLumex Opto/Components Inc.
LED YL DIFFUSED AXIAL T/H AXIAL
SSL-LXA227YD-5V
ObsoleteLumex Opto/Components Inc.
LED YL DIFFUSED AXIAL T/H AXIAL
Description
General part information
SSL-LXA227YD-5V
Yellow LED Indication - Discrete 5V Axial, Flat Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | SSL-LXA227YD-5V |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 2.72 mm |
| Lens Color | Yellow |
| Lens Diameter | 1.8 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 8 mcd |
| Mounting Type | Axial, Through Hole |
| Package / Case | Axial, Flat Leads |
| Package Name | Axial |
| Size / Dimension Length | 2.2 mm |
| Size / Dimension Width | 2.1 mm |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 5 V |
| Wavelength - Peak | 585 nm |
