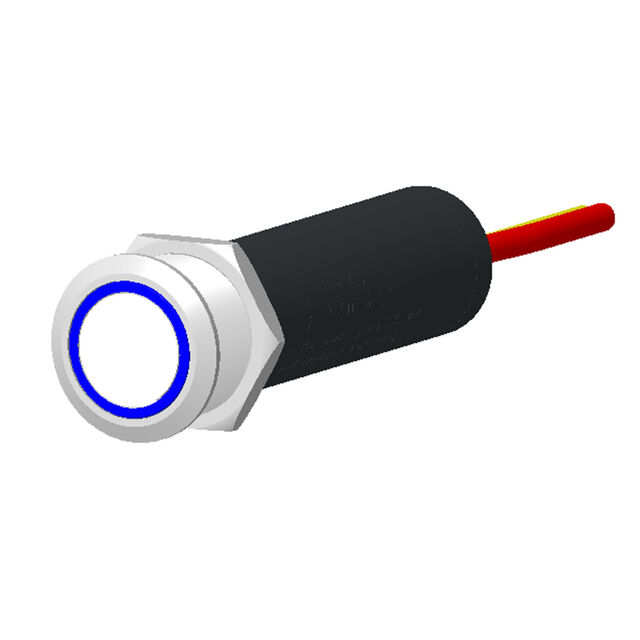

AVH1-1B26-RENA

Active

Carling Technologies

SWITCH PB ANTI-VANDAL 20A 12VDC

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH PB ANTI-VANDAL 20A 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	AVH1-1B26-RENA

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	20 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Blue
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-Off
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	12 V

SWITCH PB ANTI-VANDAL 20A 12VDC

Part	Illumination Type, Color	Color - Actuator/Cap	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Ingress Protection	Panel Cutout Dimensions [diameter]	Switch Function	Actuator Marking	Electrical Life	Current Rating (Amps)	Mounting Type	Termination Style	Type	Actuator Type
Carling Technologies AVH1-1B26-RENA	Blue, LED	Silver	12 V	70 °C	-30 ░C	SPST	IP67 - Dust Tight, Waterproof	19 mm	On-Off	No Marking	50000 Cycles	20 A	Panel Mount, Front	Wire Leads	Anti-Vandal, Illuminated	Button, Flush, Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Anti-Vandal, Illuminated Panel Mount, Front
