SA-1B-DC-3-RL-P

Active

Switch Components

SWITCH PB ENGINE START RED

Search across all available documentation for this part.

Active

Switch Components

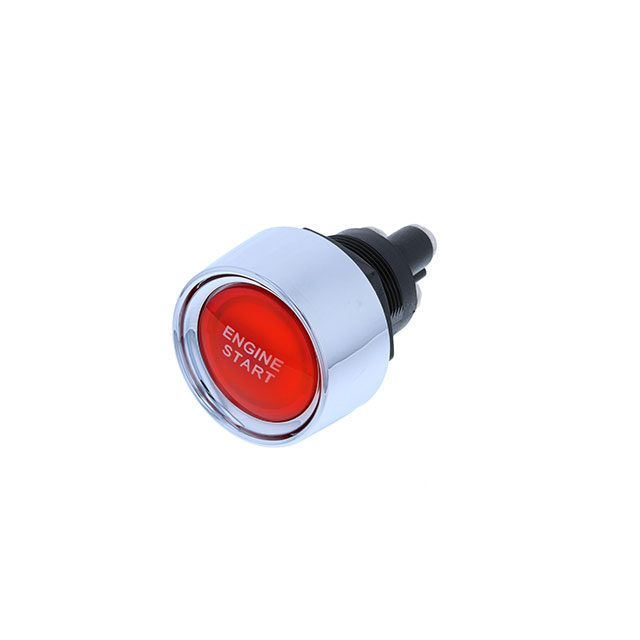

SWITCH PB ENGINE START RED

Technical Specifications

Parameters and characteristics for this part

Specification	SA-1B-DC-3-RL-P

Actuator Marking	Engine Start Symbol
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	50 A
Electrical Life	6000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Illuminated, Standard
Voltage Rating - DC	12 V

Part	Termination Style	Illumination Type, Color	Illumination Voltage (Nominal)	Voltage Rating - DC	Mechanical Life	Color - Actuator/Cap	Electrical Life	Type	Current Rating (Amps)	Mounting Type	Switch Function	Actuator Marking	Circuit	Panel Cutout Dimensions [diameter]	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]
Switch Components SA-1B-DC-3-UL-P	Screw Terminal	Blue LED	12 VDC	12 V	10000 Steps	Blue	6000 Cycles	Illuminated Standard	50 A	Panel Mount Front	Off-Mom	Engine Start Symbol	SPST-NO	22 mm	Button Round	-25 °C	85 °C
Switch Components SA-1B-DC-3-RL-P	Screw Terminal	LED Red	12 VDC	12 V	10000 Steps	Red	6000 Cycles	Illuminated Standard	50 A	Panel Mount Front	Off-Mom	Engine Start Symbol	SPST-NO	22 mm	Button Round	-25 °C	85 °C
Switch Components SA-1B-DC-3-RL	Screw Terminal	LED Red	12 VDC	12 V	10000 Steps	Red	6000 Cycles	Illuminated Standard	50 A	Panel Mount Front	Off-Mom	No Marking	SPST-NO	22 mm	Button Round	-25 °C	85 °C
