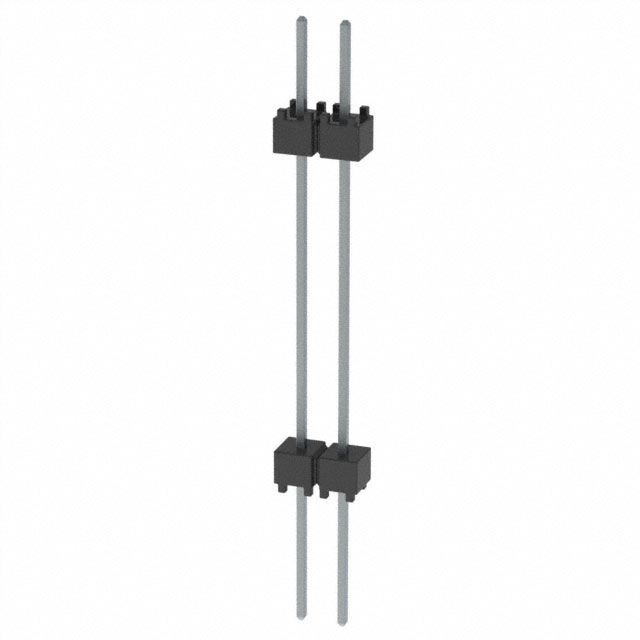

EW-05-19-G-D-800 - EW-03-10-T-D-250

EW-05-19-G-D-800

Active
Samtec Inc.

CONN BOARD STACKER HDR 10 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
EW-05-19-G-D-800 - EW-03-10-T-D-250

EW-05-19-G-D-800

Active
Samtec Inc.

CONN BOARD STACKER HDR 10 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationEW-05-19-G-D-800
ColorBlack
Contact Finish - Post (Mating)Gold
Contact Finish Thickness - Post (Mating)0.25 Ám
Contact Finish Thickness - Post (Mating)10 Áin
Length - Overall Pin [x]33.782 mm
Length - Overall Pin [x]1.33 in
Length - Post (Mating) [x]0.2 in
Length - Post (Mating) [x]5.08 mm
Length - Stack Height [x]20.32 mm
Length - Stack Height [x]0.8 in
Length - Tail0.33 in
Length - Tail8.382 mm
Mounting TypeThrough Hole
Number of Positions10
Number of Rows2
Pitch [x]2.54 mm
Pitch [x]0.1 in
Row Spacing2.54 mm
Row Spacing [x]0.1 in
TerminationSolder

EW-05-19 Series

PartColorLength - TailLength - TailContact Finish - Post (Mating)Number of PositionsPitch [x]Pitch [x]Length - Post (Mating) [x]Length - Post (Mating) [x]Row Spacing [x]Row SpacingLength - Overall Pin [x]Length - Overall Pin [x]Length - Stack Height [x]Length - Stack Height [x]Number of RowsMounting TypeTerminationContact Finish Thickness - Post (Mating)Contact Finish Thickness - Post (Mating)Length - Stack Height [z]Length - Stack Height [z]
Samtec Inc.
EW-05-19-T-D-812
Black
0.33 in
8.382 mm
Tin
10
2.54 mm
0.1 in
4.775 mm
0.188 in
0.1 in
2.54 mm
33.782 mm
1.33 in
20.625 mm
0.812 in
2
Through Hole
Solder
Samtec Inc.
EW-05-19-G-D-825
Black
0.33 in
8.382 mm
Gold
10
2.54 mm
0.1 in
4.445 mm
0.175 in
0.1 in
2.54 mm
33.782 mm
1.33 in
20.955 mm
0.825 in
2
Through Hole
Solder
0.25 Ám
10 Áin
Samtec Inc.
EW-05-19-G-D-795
Black
0.33 in
8.382 mm
Gold
10
2.54 mm
0.1 in
5.207 mm
0.205 in
0.1 in
2.54 mm
33.782 mm
1.33 in
20.193 mm
0.795 in
2
Through Hole
Solder
0.25 Ám
10 Áin
Samtec Inc.
EW-05-19-T-D-850
Black
0.33 in
8.382 mm
Tin
10
2.54 mm
0.1 in
3.81 mm
0.15 in
0.1 in
2.54 mm
33.782 mm
1.33 in
2
Through Hole
Solder
21.59 mm
0.85 in
Samtec Inc.
EW-05-19-G-D-800
Black
0.33 in
8.382 mm
Gold
10
2.54 mm
0.1 in
5.08 mm
0.2 in
0.1 in
2.54 mm
33.782 mm
1.33 in
20.32 mm
0.8 in
2
Through Hole
Solder
0.25 Ám
10 Áin
Samtec Inc.
EW-05-19-G-D-550
Black
0.33 in
8.382 mm
Gold
10
2.54 mm
0.1 in
11.43 mm
0.45 in
0.1 in
2.54 mm
33.782 mm
1.33 in
13.97 mm
0.55 in
2
Through Hole
Solder
0.25 Ám
10 Áin
Samtec Inc.
EW-05-19-S-D-750
Black
0.33 in
8.382 mm
Gold
10
2.54 mm
0.1 in
6.35 mm
0.25 in
0.1 in
2.54 mm
33.782 mm
1.33 in
19.05 mm
0.75 in
2
Through Hole
Solder
0.76 µm
30 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 2.37
50$ 1.93
100$ 1.64
DigikeyBulk 1$ 2.63

Description

General part information

EW-05-19 Series

10 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
