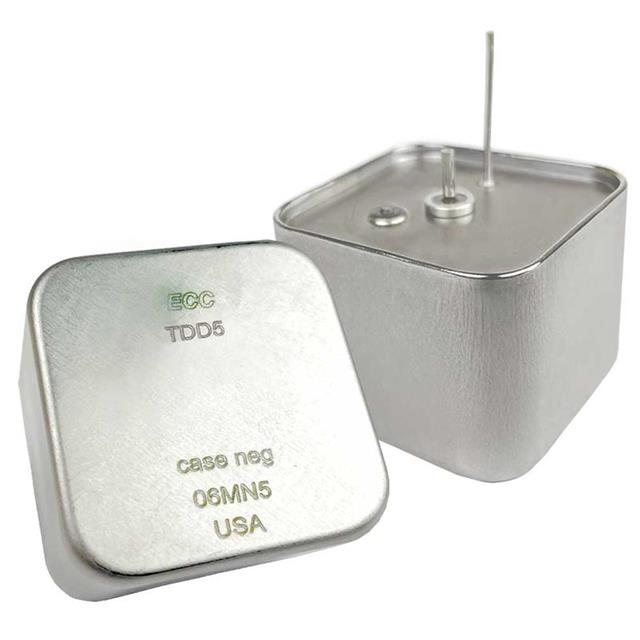

Specification	TDD5125752

Capacitance	75 mF
ESR (Equivalent Series Resistance)	15 mOhm
Features	Hybrid Wet Tantalum
Height - Seated (Max)	0.905 in
Lead Spacing	0.4 in
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Size / Dimension Length	1.4 in
Size / Dimension Width	1.4 in
Tolerance	20 %
Type	Hermetically Sealed
Voltage - Rated	125 VAC
