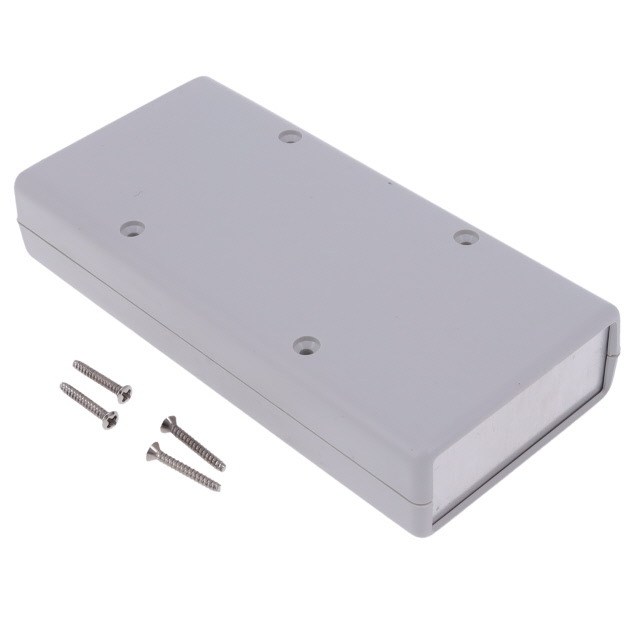

Specification	1593XALGY

Area (L x W)	14.4 in²
Color	Gray
Container Type	Box
Design	Split Sides, End Panel(s)
Height	1.1 in
Material	ABS
Material Flammability Rating	UL94 HB
Ratings	IP54
Size / Dimension Length	5.52 in
Size / Dimension Width	2.61 in
Thickness	0.1 in

1593 Series

...

Part	Height	Ratings	Container Type	Color	Material Flammability Rating	Material	Area (L x W)	Size / Dimension Width	Size / Dimension Length	Design	Thickness	Weight	Features
Hammond Manufacturing 1593XALBK	1.1 in	IP54	Box	Black	UL94 HB	ABS	14.4 in²	2.61 in	5.52 in	End Panel(s) Split Sides	0.1 in
Hammond Manufacturing 1593SALGY	0.83 in	IP54	Box	Gray	UL94 HB	ABS	9.48 in²	2.62 in	3.62 in	End Panel(s) Split Sides	0.1 in
Hammond Manufacturing 1593KBK	1.102 in		Box	Black	UL94 HB	ABS	6.9 in²	2.607 in	2.647 in	End Panel(s) Hand Held Split Sides		0.106 lb	PCB Supports
Hammond Manufacturing 1593DGY	1.016 in		Box	Gray	UL94 HB	ABS	6.31 in²	1.406 in	4.488 in	End Panel(s) Hand Held Split Sides		0.1 lb	PCB Supports
Hammond Manufacturing 1593KTBU	1.102 in		Box	Translucent - Blue	UL94 HB	ABS	6.9 in²	2.607 in	2.647 in	End Panel(s) Hand Held Split Sides		0.11 lb	PCB Supports
Hammond Manufacturing 1593PTBU	1.098 in		Box	Translucent - Blue	UL94 HB	ABS	9.48 in²	2.618 in	3.622 in	Cover End Panel Hand Held		0.13 lbs	Battery Door PCB Supports
Hammond Manufacturing 1593SGY	0.827 in		Box	Gray	UL94 HB	ABS	9.48 in²	2.618 in	3.622 in	Cover End Panel Hand Held		0.119 lb	Battery Door PCB Supports
Hammond Manufacturing 1593XBK	1.102 in		Box	Black	UL94 HB	ABS	14.4 in²	2.607 in	5.521 in	End Panel(s) Hand Held Split Sides			PCB Supports
Hammond Manufacturing 1593PALBK	1.1 in	IP54	Box	Black	UL94 HB	ABS	9.48 in²	2.62 in	3.62 in	End Panel(s) Split Sides	0.1 in
Hammond Manufacturing 1593TGY	0.827 in		Box	Gray	UL94 HB	ABS	11.5 in²	2.618 in	4.409 in	Cover End Panel Hand Held		0.131 lb	Battery Door PCB Supports
