1408313-1

Active

TE Connectivity AMP Connectors

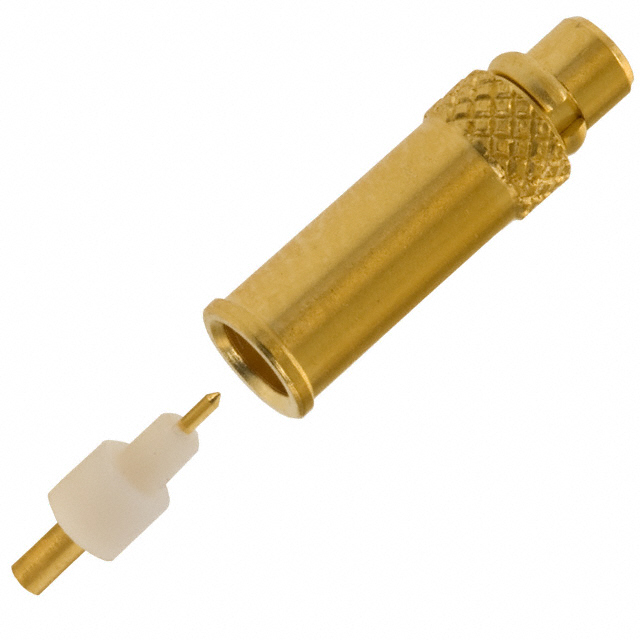

CONN MMCX PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MMCX PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

CONN MMCX PLUG STR 50 OHM SOLDER

Part	Number of Ports	Shield Termination	Frequency - Max [Max]	Fastening Type	Impedance	Voltage Rating	Housing Color	Connector Style	Mounting Type	Center Contact Plating	Mating Cycles	Body Finish	Connector Type	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination
TE Connectivity AMP Connectors 1408313-1	1	Solder	6000 MHz	Snap-On	50 Ohms	170 V	Gold	MMCX	Free Hanging (In-Line)	Gold	500	Gold	Male Pin, Plug	RG-405 (.085" Semi Rigid)	155 °C	-55 °C	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 5.84

General part information

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
