SPD08-040-RB-TR

Active

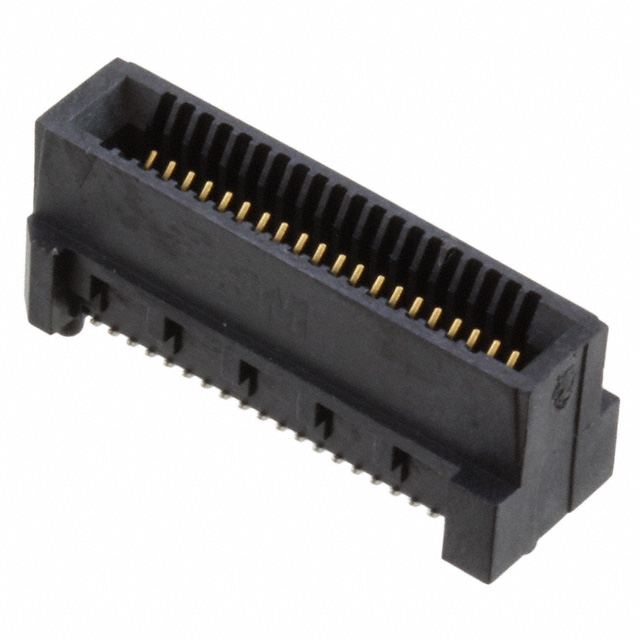

3M HIGH-SPEED CARD-EDGE CONNECTOR, SPD08 SERIES, SPD08-040-RB-TR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSPD08 Series Overview

SPD08-040-RB-TR

Active

3M HIGH-SPEED CARD-EDGE CONNECTOR, SPD08 SERIES, SPD08-040-RB-TR

Deep-Dive with AI

DocumentsSPD08 Series Overview

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPD08-040-RB-TR	SPD08 Series

Card Thickness	0.062 in	0.062 in
Card Thickness	1.57 mm	1.57 mm
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge, PCI Express™
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Features	Board Guide	Latches, Board Guide
Gender	Female	Female
Material - Insulation	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled, Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount	Surface Mount
Number of Positions	40	40 - 160
Number of Positions/Bay/Row	-	30
Number of Positions/Bay/Row [custom]	20	20
Number of Positions/Bay/Row [custom]	20	20
Number of Positions/Bay/Row [custom]	20	20
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.8 mm	0.8 mm
Pitch [x]	0.031 in	0.031 in
Read Out	Dual	Dual
Termination	Solder	Solder

SPD08 Series

CONN EDGE DUAL FML 200POS 0.031

Part	Material - Insulation	Color	Termination	Contact Material	Card Thickness	Card Thickness	Features	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Gender	Contact Finish	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Card Type	Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
3M SPD08-200-L-RB-TR	Liquid Crystal Polymer (LCP), Glass Filled	Black	Solder	Copper Alloy	0.062 in	1.57 mm	Board Guide, Latches	0.76 Ám	30 Áin	Surface Mount	Female	Gold	Dual	-55 °C	125 °C	2	Non Specified - Dual Edge	Cantilever	0.8 mm	0.031 in
3M SPD08-160-L-RB	Liquid Crystal Polymer (LCP)	Black	Solder	Copper Alloy	0.062 in	1.57 mm	Latches	0.76 Ám	30 Áin	Surface Mount	Female	Gold	Dual	-55 °C	125 °C	2	PCI Express™		0.8 mm	0.031 in	160
3M SPD08-040-L-RB-TR	Liquid Crystal Polymer (LCP), Glass Filled	Black	Solder	Copper Alloy	0.062 in	1.57 mm	Board Guide, Latches	0.76 Ám	30 Áin	Surface Mount	Female	Gold	Dual	-55 °C	125 °C	2	Non Specified - Dual Edge	Cantilever	0.8 mm	0.031 in	40	20	20	20
3M SPD08-160-RB-TR	Liquid Crystal Polymer (LCP)	Black	Solder	Copper Alloy	0.062 in	1.57 mm		0.76 Ám	30 Áin	Surface Mount	Female	Gold	Dual	-55 °C	125 °C	2	PCI Express™		0.8 mm	0.031 in	160
3M SPD08-060-L-RB-TR	Liquid Crystal Polymer (LCP), Glass Filled	Black	Solder	Copper Alloy	0.062 in	1.57 mm	Board Guide, Latches	0.76 Ám	30 Áin	Surface Mount	Female	Gold	Dual	-55 °C	125 °C	2	Non Specified - Dual Edge	Cantilever	0.8 mm	0.031 in	60				30
3M SPD08-100-L-RB-TR	Liquid Crystal Polymer (LCP), Glass Filled	Black	Solder	Copper Alloy	0.062 in	1.57 mm	Board Guide, Latches	0.76 Ám	30 Áin	Surface Mount	Female	Gold	Dual	-55 °C	125 °C	2	Non Specified - Dual Edge	Cantilever	0.8 mm	0.031 in	100
3M SPD08-200-RB-TR	Liquid Crystal Polymer (LCP), Glass Filled	Black	Solder	Copper Alloy	0.062 in	1.57 mm	Board Guide	0.76 Ám	30 Áin	Surface Mount	Female	Gold	Dual	-55 °C	125 °C	2	Non Specified - Dual Edge	Cantilever	0.8 mm	0.031 in
3M SPD08-080-RB-TR	Liquid Crystal Polymer (LCP), Glass Filled	Black	Solder	Copper Alloy	0.062 in	1.57 mm	Board Guide	0.76 Ám	30 Áin	Surface Mount	Female	Gold	Dual	-55 °C	125 °C	2	Non Specified - Dual Edge	Cantilever	0.8 mm	0.031 in	80
3M SPD08-040-RB-TR	Liquid Crystal Polymer (LCP), Glass Filled	Black	Solder	Copper Alloy	0.062 in	1.57 mm	Board Guide	0.76 Ám	30 Áin	Surface Mount	Female	Gold	Dual	-55 °C	125 °C	2	Non Specified - Dual Edge	Cantilever	0.8 mm	0.031 in	40	20	20	20
3M SPD08-050-RB-TR	Liquid Crystal Polymer (LCP), Glass Filled	Black	Solder	Copper Alloy	0.062 in	1.57 mm	Board Guide	0.76 Ám	30 Áin	Surface Mount	Female	Gold	Dual	-55 °C	125 °C	2	Non Specified - Dual Edge	Cantilever	0.8 mm	0.031 in	50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.23
		10	$ 7.85
		25	$ 7.09
		50	$ 6.57
		100	$ 6.11
	Digi-Reel®	1	$ 8.52
		10	$ 7.67
		25	$ 7.22
		50	$ 7.04
		100	$ 6.85
	Tape & Reel (TR)	400	$ 5.30
		800	$ 4.95
		1200	$ 4.77
		2000	$ 4.58
Newark	Each (Supplied on Full Reel)	1200	$ 4.74

Description

General part information

SPD08 Series

40 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black

Documents

Technical documentation and resources

SPD08 Series Overview

Datasheet
