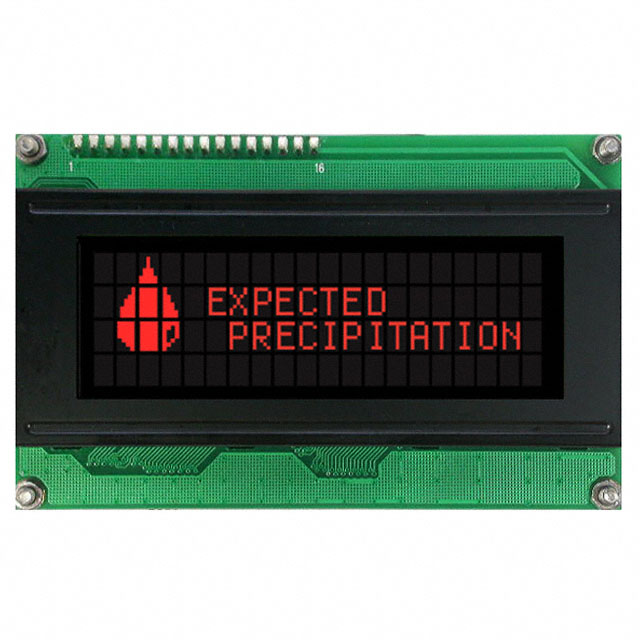

Specification	LK204-25-R-VPT

Background Color	Black
Backlight Color	Red
Backlight Type	LED
Character Height	4.75 mm
Character Height (Dots)	8 Dots
Character Width	2.95 mm
Character Width (Dots)	5 Dots
Display Columns	20
Display Mode	Transmissive
Display Rows	4
Display Type	TN - Twisted Nematic
Dot Size Height	0.55 mm
Dot Size Width	0.55 mm
Interface	I2C, TTL, RS-232
Number of Characters	80 characters
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	0 °C
Outline Height	28.98 mm
Outline Length	98 mm
Outline Width	60 mm
Text Color	Red
Viewing Area Length	76 mm
Viewing Area Width	25.2 mm
Voltage - Supply (Maximum)	35 V
Voltage - Supply (Minimum)	9 VDC

LK204 Series

...

Part	Text Color	Background Color	Display Mode	Interface	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Display Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Characters	Character Height	Character Width	Display Rows	Display Columns	Outline Length	Outline Height	Outline Width	Backlight Type	Backlight Color	Viewing Area Length	Viewing Area Width	Dot Size Width	Dot Size Height	Character Width (Dots)	Character Height (Dots)	Voltage - Supply
Matrix Orbital LK204-7T-1U-GW	Gray	White	Transmissive	I2C RS-232 TTL	5.25 V	4.75 V	LCD - Color	0 °C	50 °C	80 characters	5.15 mm	3.2 mm	4	20	144 mm	34.3 mm	38 mm	LED	White	82 mm	28.4 mm	0.6 mm	0.65 mm	5 Dots	8 Dots
Matrix Orbital LK204-7T-1U-TCI-LV-E	Blue Green Red	Black	Transmissive	I2C RS-232 TTL			LCD - Color	-20 °C	70 °C	80 characters	5.15 mm	3.2 mm	4	20	144 mm	34.3 mm	38 mm	LED	Blue Green Red	82 mm	28.4 mm	0.6 mm	0.65 mm	5 Dots	8 Dots	3.3 V
Matrix Orbital LK204-25-422-R-VPT-E	Red	Black		RS-422	35 V	9 VDC	LCD - Monochrome	-20 °C	70 °C	80 characters	4.75 mm	2.95 mm	4	20	98 mm	28.82 mm	60 mm			70.4 mm	20.8 mm	0.55 mm	0.55 mm	5 Dots	8 Dots
Matrix Orbital LK204-25-GW-V	Gray	White	Transmissive	I2C RS-232 TTL	15 V	9 VDC	TN - Twisted Nematic	0 °C	50 °C	80 characters	4.75 mm	2.95 mm	4	20	98 mm	28.98 mm	60 mm	LED	White	76 mm	25.2 mm	0.55 mm	0.55 mm	5 Dots	8 Dots
Matrix Orbital LK204-7T-1U-WB-LV-E	White	Blue	Transmissive	I2C RS-232 TTL			LCD - Color	-20 °C	70 °C	80 characters	5.15 mm	3.2 mm	4	20	144 mm	34.3 mm	38 mm	LED	Blue	82 mm	28.4 mm	0.6 mm	0.65 mm	5 Dots	8 Dots	3.3 V
Matrix Orbital LK204-25-V-E	Yellow	Black		I2C RS-232 TTL	15 V	9 VDC	LCD - Monochrome	-20 °C	70 °C	80 characters	4.75 mm	2.95 mm	4	20	98 mm	28.82 mm	60 mm			70.4 mm	20.8 mm	0.55 mm	0.55 mm	5 Dots	8 Dots
Matrix Orbital LK204-25-422-WB-VPT-E	White	Blue		RS-422	35 V	9 VDC	LCD - Monochrome	-20 °C	70 °C	80 characters	4.75 mm	2.95 mm	4	20	98 mm	28.82 mm	60 mm			70.4 mm	20.8 mm	0.55 mm	0.55 mm	5 Dots	8 Dots
Matrix Orbital LK204-25-GW-E	Gray	White	Transmissive	I2C RS-232 TTL	5.25 V	4.75 V	TN - Twisted Nematic	-20 °C	70 °C	80 characters	4.75 mm	2.95 mm	4	20	98 mm	28.98 mm	60 mm	LED	White	76 mm	25.2 mm	0.55 mm	0.55 mm	5 Dots	8 Dots
Matrix Orbital LK204-25-IY	Yellow	Black	Transmissive	I2C RS-232 TTL	5.25 V	4.75 V	TN - Twisted Nematic	0 °C	50 °C	80 characters	4.75 mm	2.95 mm	4	20	98 mm	28.98 mm	60 mm	LED	Green Yellow	76 mm	25.2 mm	0.55 mm	0.55 mm	5 Dots	8 Dots
Matrix Orbital LK204-25-E	Gray	Green	Transmissive	I2C RS-232 TTL	5.25 V	4.75 V	TN - Twisted Nematic	-20 °C	70 °C	80 characters	4.75 mm	2.95 mm	4	20	98 mm	28.98 mm	60 mm	LED	Green Yellow	76 mm	25.2 mm	0.55 mm	0.55 mm	5 Dots	8 Dots
