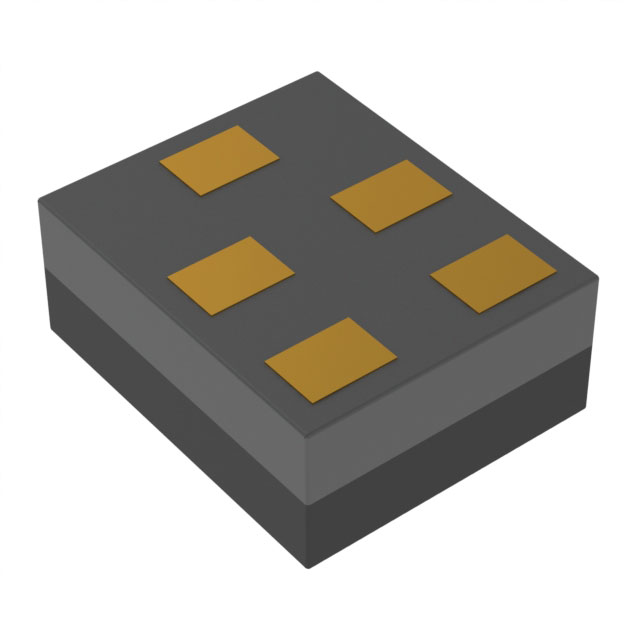

B39242B7509L210
ActiveQualcomm (RF front-end (RFFE) filters)
RF FILTER 2.442GHZ 5SMD
B39242B7509L210
ActiveQualcomm (RF front-end (RFFE) filters)
RF FILTER 2.442GHZ 5SMD
Description
General part information
B39242B7509L210
2.442GHz Center Frequency RF Filter (Radio Frequency) 79MHz Bandwidth 2.5dB 5-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | B39242B7509L210 |
|---|---|
| Bandwidth | 79 MHz |
| Frequency (Center) | 2.442 GHz |
| Height (Max) | 0.028 in |
| Insertion Loss | 2.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD, No Lead |
| Size / Dimension Length | 0.043 in |
| Size / Dimension Width | 0.035 in |
