630-7W2-240-7N6

Active

EDAC Inc.

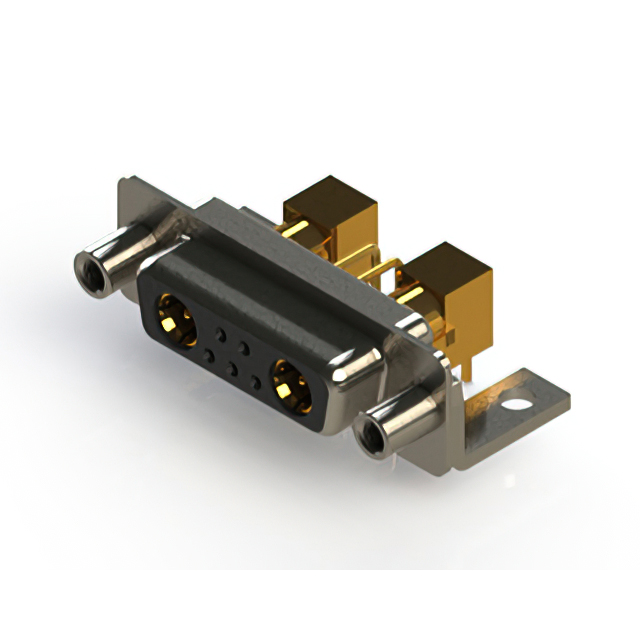

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DA-7W2, RECEPTACLE, 7 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

630-7W2-240-7N6

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DA-7W2, RECEPTACLE, 7 CONTACTS

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-7W2-240-7N6

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder
Voltage Rating	125 VDC

630-7W2 Series

...

Part	Mounting Type	Contact Material	Material Flammability Rating	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish	Flange Feature	Voltage Rating	Number of Positions [custom]	Number of Positions [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Material, Finish	Contact Type	Number of Rows	Color	Dielectric Material	Shell Size, Connector Layout	Connector Type	Connector Style	Current Rating (Amps)	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)
EDAC Inc. 630-7W2-640-2N4	Through Hole Right Angle	Copper Alloy	UL94 V-0	9.4 mm	0.37 in	0.76 Ám	30 Áin	Solder	Gold	Housing/Shell (4-40)	125 VDC	7	2	-55 °C	125 °C	Mounting Brackets	Nickel Plated Steel	Signal and Power	2	Black	Polyester Thermoplastic	2 (DA A) - 7W2	Receptacle Female Sockets	Combo D-Sub	5 A 20 A
EDAC Inc. 630-7W2-240-3NC	Through Hole Right Angle	Copper Alloy	UL94 V-0	9.4 mm	0.37 in			Solder	Gold	Housing/Shell (M3)	125 VDC	7	2	-55 °C	125 °C	Mounting Brackets	Nickel Plated Steel	Signal and Power	2	Black	Polyester Thermoplastic	2 (DA A) - 7W2	Receptacle Female Sockets	Combo D-Sub	5 A 30 A	Flash
EDAC Inc. 630-7W2-650-2NB	Through Hole Right Angle	Copper Alloy	UL94 V-0	9.4 mm	0.37 in	0.76 Ám	30 Áin	Solder	Gold	Housing/Shell (M3)	125 VDC	7	2	-55 °C	125 °C	Board Lock Mounting Brackets	Nickel Plated Steel	Signal and Power	2	Black	Polyester Thermoplastic	2 (DA A) - 7W2	Receptacle Female Sockets	Combo D-Sub	5 A 20 A
EDAC Inc. 630-7W2-640-2NA	Through Hole Right Angle	Copper Alloy	UL94 V-0	9.4 mm	0.37 in	0.76 Ám	30 Áin	Solder	Gold	Board Side (M3)	125 VDC	7	2	-55 °C	125 °C		Nickel Plated Steel	Signal and Power	2	Black	Polyester Thermoplastic	2 (DA A) - 7W2	Receptacle Female Sockets	Combo D-Sub	5 A 20 A
EDAC Inc. 630-7W2-640-5NB	Through Hole Right Angle	Copper Alloy	UL94 V-0	9.4 mm	0.37 in	0.76 Ám	30 Áin	Solder	Gold	Housing/Shell (M3)	125 VDC	7		-55 °C	125 °C	Board Lock Mounting Brackets	Nickel Plated Steel	Coax Signal	2	Black	Polyester Thermoplastic	2 (DA A) - 7W2	Receptacle Female Sockets	Combo D-Sub			2	5
EDAC Inc. 630-7W2-640-7T2	Through Hole Right Angle	Copper Alloy	UL94 V-0	9.4 mm	0.37 in	0.76 Ám	30 Áin	Solder	Gold	Housing/Shell (4-40)	125 VDC	7		-55 °C	125 °C			Coax Signal	2	Black	Polyester Thermoplastic	2 (DA A) - 7W2	Receptacle Female Sockets	Combo D-Sub			2	5
EDAC Inc. 630-7W2-250-1N1	Through Hole Right Angle	Copper Alloy	UL94 V-0	9.4 mm	0.37 in			Solder	Gold	Housing/Shell (Unthreaded)	125 VDC	7	2	-55 °C	125 °C	Shielded	Nickel Plated Steel	Signal and Power	2	Black	Polyester Thermoplastic	2 (DA A) - 7W2	Receptacle Female Sockets	Combo D-Sub		Flash			10A 5A
EDAC Inc. 630-7W2-240-7N6	Through Hole Right Angle	Copper Alloy	UL94 V-0	9.4 mm	0.37 in			Solder	Gold	4-40	125 VDC	7		-55 °C	125 °C		Nickel Plated Steel	Coax Signal	2	Black	Polyester Thermoplastic	2 (DA A) - 7W2	Receptacle Female Sockets	Combo D-Sub		Flash	2	5
EDAC Inc. 630-7W2-250-4TD	Through Hole Right Angle	Copper Alloy	UL94 V-0	9.4 mm	0.37 in			Solder	Gold	M3	125 VDC	7	2	-55 °C	125 °C	Board Lock Mounting Brackets		Signal and Power	2	Black	Polyester Thermoplastic	2 (DA A) - 7W2	Receptacle Female Sockets	Combo D-Sub	5 A 40 A	Flash
EDAC Inc. 630-7W2-250-4T6	Through Hole Right Angle	Copper Alloy	UL94 V-0	9.4 mm	0.37 in			Solder	Gold	4-40	125 VDC	7	2	-55 °C	125 °C			Signal and Power	2	Black	Polyester Thermoplastic	2 (DA A) - 7W2	Receptacle Female Sockets	Combo D-Sub	5 A 40 A	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 9.74
Newark	Each	100	$ 15.88
		250	$ 15.31
		500	$ 14.46

Description

General part information

630-7W2 Series

7 (5 + 2 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
