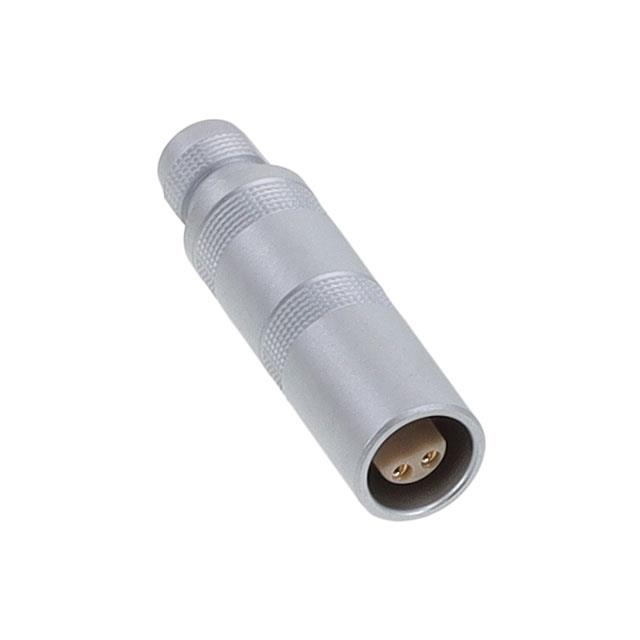

PCA.0S.303.CLLC27

Active

LEMO

CONN CIRC RCPT 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PCA.0S.303.CLLC27

Active

LEMO

CONN CIRC RCPT 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PCA.0S.303.CLLC27	PCA.0S Series

	-	-
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174
Cable Opening	-	0.051 - 0.067 in
Cable Opening	-	1.3 - 4.2 mm
Cable Opening	-	2.2 - 5.7 mm
Cable Opening	-	0.087 - 0.126 in
Cable Opening	-	0.087 - 0.244 in
Cable Opening	-	0.051 - 0.224 in
Cable Opening	-	2.2 - 6.2 mm
Cable Opening	-	1.3 - 5.7 mm
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	5.2 mm
Cable Opening	-	4.2 mm
Cable Opening	-	0.205 - 0.224 in
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Triaxial, Coaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Female Sockets, Male Pins, Receptacle, Receptacle, Female Sockets, Insert, Female Socket
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass, Alumel, Chromel, Constantan, Copper
Contact Termination	-	Solder
Current Rating (Amps)	7 A	4 - 10 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell, Insert Only, Requires Shell
Housing Color	-	Silver
Impedance	-	50 Ohms
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	-	1
Number of Positions	-	1 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	303	302 - 403
Shield Termination	-	Clamp
Shielding	Shielded	Shielded

PCA.0S Series

CONN CIRC RCPT 4P GOLD SLDR CUP

Part	Shell Finish	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Orientation	Features	Shell Size - Insert	Primary Material	Ingress Protection	Fastening Type	Material Flammability Rating	Mounting Type	Contact Material	Insert Material	Connector Type	Color	Current Rating (Amps)	Shielding	Shell Material	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [custom]
LEMO PCA.0S.304.CLLK47	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	304	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	7 A	Shielded	Brass	4
LEMO PCA.0S.302.CLLC17	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2	0.051 in, 0.067 in	1.3 mm, 1.7 mm
LEMO PCA.0S.302.CLLC32Z	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2			2.2 mm, 3.2 mm	0.087 in, 0.126 in
LEMO PCA.0S.302.CLLK62Z	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2					0.244 in	0.224 in	6.2 mm	5.7 mm
LEMO PCA.0S.304.CLLC32Z	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	304	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	7 A	Shielded	Brass	4			2.2 mm, 3.2 mm	0.087 in, 0.126 in
LEMO PCA.0S.302.CLLK52	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2		4.2 mm							0.165 in, 0.205 in	5.2 mm
LEMO PCA.0S.403.CTLC32	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	403	Metal	IP50	Push-Pull		Free Hanging (In-Line)	Bronze	Polytetrafluoroethylene (PTFE)	Receptacle, Female Sockets	Silver	4 A	Shielded	Brass	1			2.2 mm, 3.2 mm	0.087 in, 0.126 in
LEMO PCA.0S.302.CLLC37	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2					0.146 in	0.126 in	3.7 mm	3.2 mm
LEMO PCA.0S.403.CTLC27	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	403	Metal	IP50	Push-Pull		Free Hanging (In-Line)	Bronze	Polytetrafluoroethylene (PTFE)	Receptacle, Female Sockets	Silver	4 A	Shielded	Brass	1
LEMO PCA.0S.302.CLLC42	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2					0.165 in	0.126 in		3.2 mm			4.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.91
		10	$ 26.20
		25	$ 25.06
		50	$ 24.26
		100	$ 23.45
		250	$ 22.15

Description

General part information

PCA.0S Series

3 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup
