Description
General part information

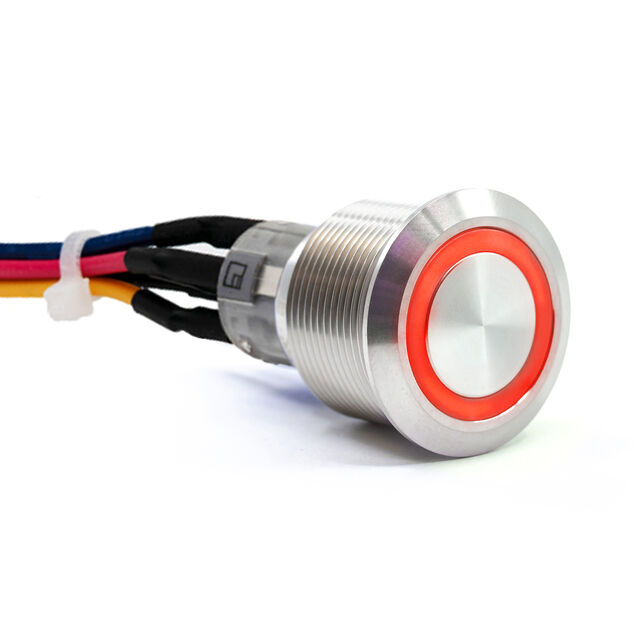

ULV7FWBSS3G4
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | ULV7FWBSS3G4 |
|---|---|
| Actuator Type | Round, Flush, Button |
| Circuit | SPDT |
| Color | Green, Red |
| Color - Actuator/Cap | Silver |
| Current Rating | 3 A |
| Electrical Life (Cycles) | 50000 |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 12 V |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Diameter | 22.2 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Type | Illuminated, Anti-Vandal |
| Voltage Rating - AC | 125 V |
