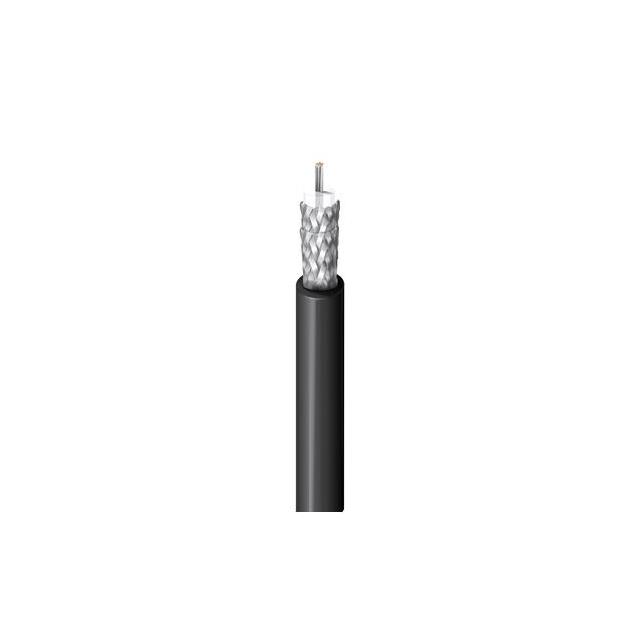

8268 010500

Active

Belden Inc.

#13 PE DBLB PVC

Search across all available documentation for this part.

Active

Belden Inc.

#13 PE DBLB PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8268 010500

Cable Group	RG-214
Cable Type	Coaxial
Conductor Material	Copper, Silver Coated
Conductor Strand	21 AWG, 7 Strands
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.425 in
Jacket (Insulation) Diameter [diameter]	10.8 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Silver Coated
Shield Type	Double Braid
Usage	RF Signal
Wire Gauge	13 AWG

Part	Conductor Material	Wire Gauge	Conductor Strand	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Cable Group	Jacket (Insulation) Material	Cable Type	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Jacket Color	Shield Coverage	Shield Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]
Belden Inc. 8268 010500	Copper Silver Coated	13 AWG	7 Strands 21 AWG	50 Ohms	-40 °C	80 C	RF Signal	RG-214	Poly-Vinyl Chloride (PVC)	Coaxial	Copper Silver Coated	0.425 in	10.8 mm	152.4 m	6000 in	Black	95 %	Double Braid	7.24 mm	0.285 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 18.17

General part information

Coaxial Cable 13 AWG RG-214 500.0' (152.40m) 50 Ohms
