HIP5011IS

Active

Intersil

HB BASED PERIPHERAL DRIVER

Search across all available documentation for this part.

Active

Intersil

HB BASED PERIPHERAL DRIVER

Technical Specifications

Parameters and characteristics for this part

Specification	HIP5011IS

Channel Type	Synchronous
Current - Peak Output (Source, Sink) [custom]	17 A
Current - Peak Output (Source, Sink) [custom]	17 A
Driven Configuration	Half-Bridge
Gate Type	MOSFET (N-Channel)
Input Type	Non-Inverting
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA
Rise / Fall Time (Typ) [custom]	20 ns
Rise / Fall Time (Typ) [custom]	20 ns
Supplier Device Package	7-Gullwing SIP
Voltage - Supply [Max]	14.4 V
Voltage - Supply [Min]	9.6 V

HB BASED PERIPHERAL DRIVER

Part	Gate Type	Channel Type	Package / Case	Number of Drivers	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Driven Configuration	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Supplier Device Package	Mounting Type
Intersil HIP5011IS	MOSFET (N-Channel)	Synchronous	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA	2	20 ns	20 ns	Non-Inverting	85 °C	-40 °C	14.4 V	9.6 V	Half-Bridge	17 A	17 A	7-Gullwing SIP	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	74	$ 4.10

General part information

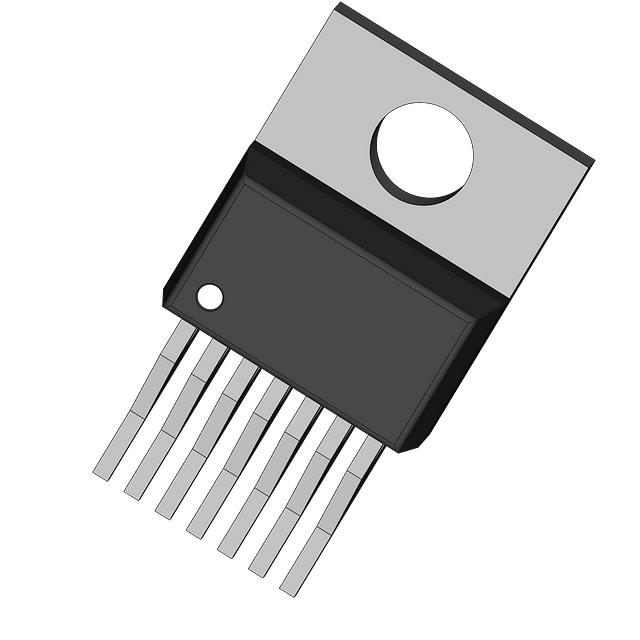

Half-Bridge Gate Driver IC Non-Inverting 7-Gullwing SIP
