74AUP1G04DTR

Active

STMicroelectronics

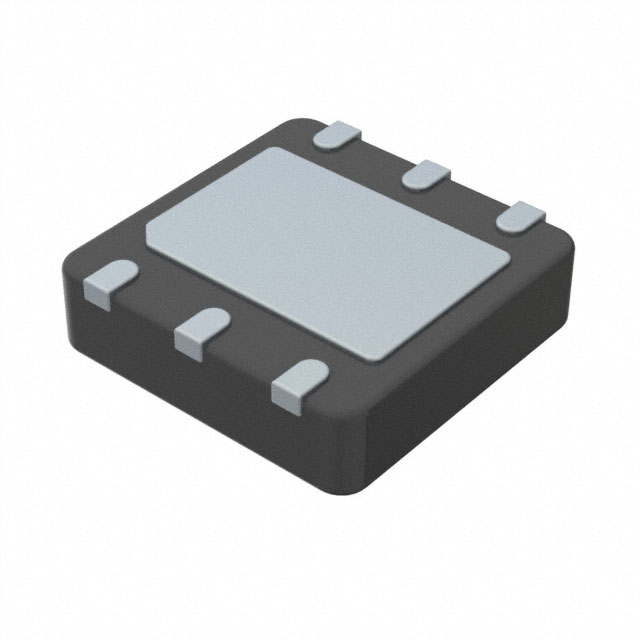

IC INVERTER 1CH 1-INP 6DFN

Search across all available documentation for this part.

Active

STMicroelectronics

IC INVERTER 1CH 1-INP 6DFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	74AUP1G04DTR	74AUP1G04 Series

Current - Output High, Low	10 mA, 10 mA	10 mA
Current - Quiescent (Max) [Max]	100 nA	100 nA
Input Logic Level - High [Max]	2 V	2 V
Input Logic Level - High [Min]	1.6 V	1.6 V
Input Logic Level - Low [Max]	0.8 V	0.8 V
Input Logic Level - Low [Min]	0.7 V	0.7 V
Logic Type	Inverter	Inverter
Max Propagation Delay @ V, Max CL	3.8 ns	3.8 ns
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	1	1
Number of Inputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-UFDFN	6-UFDFN, SOT-665
Supplier Device Package	6-DFN (1.2x1.0)	6-DFN (1.2x1.0), SOT-665
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.2 V	1.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC INVERTER 1CH 1-INP 6DFN

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Mounting Type	Current - Quiescent (Max) [Max]	Number of Circuits	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Max Propagation Delay @ V, Max CL	Logic Type	Current - Output High, Low	Number of Inputs	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case
STMicroelectronics 74AUP1G04DTR	6-DFN (1.2x1.0)	85 °C	-40 °C	0.8 V	0.7 V	Surface Mount	100 nA	1	2 V	1.6 V	3.8 ns	Inverter	10 mA, 10 mA	1	1.2 V	3.6 V	6-UFDFN
STMicroelectronics 74AUP1G04GTR	SOT-665	85 °C	-40 °C	0.8 V	0.7 V	Surface Mount	100 nA	1	2 V	1.6 V	3.8 ns	Inverter	10 mA, 10 mA	1	1.2 V	3.6 V	SOT-665

General part information

Inverter IC 1 Channel 6-DFN (1.2x1.0)
