25016 BK005
ActiveALPHA WIRE
XTRA-GUARD 2 /100 FT /EACH
Deep-Dive with AI
Search across all available documentation for this part.
25016 BK005
ActiveALPHA WIRE
XTRA-GUARD 2 /100 FT /EACH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 25016 BK005 | 25016 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG | 32 AWG |
| Conductor Strand [custom] | 7 | 7 |
| Features | Rip Cord, Biological Compatibility | Rip Cord, Biological Compatibility |
| Jacket (Insulation) Diameter [diameter] | 5.11 mm | 5.11 mm |
| Jacket (Insulation) Diameter [diameter] | 0.201 in | 0.201 in |
| Jacket (Insulation) Material | Polyurethane (PU) | Polyurethane (PU) |
| Jacket Color | Black | Slate, Black |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Length | - | Enter Number of Feet in Order Quantity |
| Length [x] | 30.5 m | 30.5 m |
| Length [x] | 100 ft | 100 ft |
| Number of Conductors | 6 | 6 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 | UL Style 20668, ISO 10993 |
| Spool Size | - | 1000 ft |
| Spool Size | - | 304.8 m |
| Voltage | 300 V | 300 V |
| Wire Gauge | 24 AWG | 24 AWG |
25016 Series
CABLE 6COND 24AWG SLATE 1000'
| Part | Features | Conductor Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Cable Type | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Number of Conductors | Conductor Insulation | Length [x] | Length [x] | Spool Size | Spool Size | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 25016 SL199 | Biological Compatibility, Rip Cord | Copper, Tinned | 1000 ft | 304.8 m | 32 AWG | 7 | 300 V | Polyurethane (PU) | 5.11 mm | 0.201 in | 24 AWG | Multi-Conductor | Slate | -30 ░C | 90 °C | ISO 10993, UL Style 20668 | 6 | Poly-Vinyl Chloride (PVC) | |||||
ALPHA WIRE 25016 BK005 | Biological Compatibility, Rip Cord | Copper, Tinned | 32 AWG | 7 | 300 V | Polyurethane (PU) | 5.11 mm | 0.201 in | 24 AWG | Multi-Conductor | Black | -30 ░C | 90 °C | ISO 10993, UL Style 20668 | 6 | Poly-Vinyl Chloride (PVC) | 30.5 m | 100 ft | |||||
ALPHA WIRE 25016 BK199 | Biological Compatibility, Rip Cord | Copper, Tinned | 32 AWG | 7 | 300 V | Polyurethane (PU) | 5.11 mm | 0.201 in | 24 AWG | Multi-Conductor | Black | -30 ░C | 90 °C | ISO 10993, UL Style 20668 | 6 | Poly-Vinyl Chloride (PVC) | 1000 ft | 304.8 m | Enter Number of Feet in Order Quantity |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
25016 Series

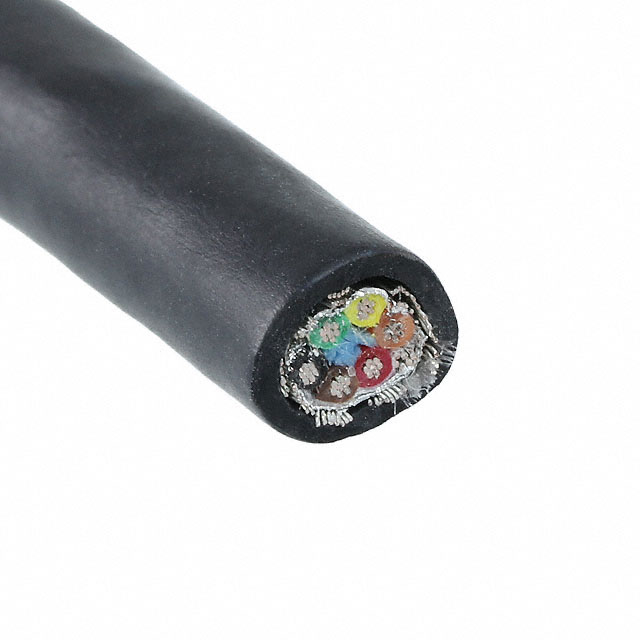

6 Conductor Multi-Conductor Cable Black 24 AWG 100.0' (30.5m)
