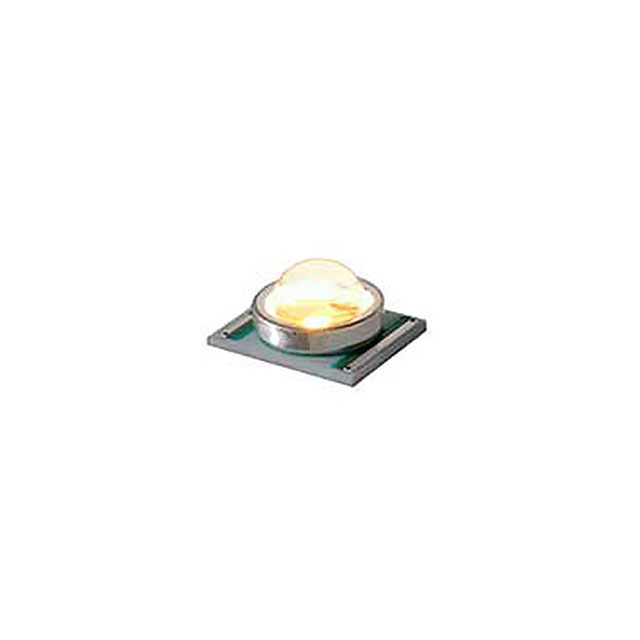

XRCRDO-L1-R250-00M02

Active

Cree LED

LED UNI-COLOR ORANGE 2-PIN SMD EP T/R

Search across all available documentation for this part.

Active

Cree LED

LED UNI-COLOR ORANGE 2-PIN SMD EP T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XRCRDO-L1-R250-00M02	XRCRDO Series

Color	Red-Orange	Red-Orange
Current - Max [Max]	700 mA	700 mA
Current - Test	350 mA	350 mA
Height - Seated (Max) [Max] [z]	0.181 "	0.181 "
Height - Seated (Max) [Max] [z]	4.6 mm	4.6 mm
Lumens/Watt @ Current - Test	56 lm/W	43 - 56 lm/W
Luminous Flux @ Current/Temperature	43 lm	33 - 43 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	9073 Metric	9073 Metric
Package / Case	3529	3529
Size / Dimension [x]	9 mm	9 mm
Size / Dimension [x]	0.354 "	0.354 "
Size / Dimension [y]	7 mm	7 mm
Size / Dimension [y]	0.276 in	0.276 in
Supplier Device Package	SMD	SMD
Thermal Resistance of Package [diameter]	15 °C/W	15 °C/W
Viewing Angle [custom]	90 °	90 °
Voltage - Forward (Vf) (Typ)	2.2 V	2.2 V
Wavelength	613 nm	613 - 618 nm
Wavelength [Max]	615 nm	615 - 620 nm
Wavelength [Min]	610 nm	610 nm

LED XLAMP XRC RED-ORG 613NM SMD

Part	Mounting Type	Viewing Angle [custom]	Supplier Device Package	Thermal Resistance of Package [diameter]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Wavelength [Max]	Wavelength [Min]	Wavelength	Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Color
Cree LED XRCRDO-L1-0000-00M02	Surface Mount	90 °	SMD	15 °C/W	7 mm	0.276 in	9 mm	0.354 "	615 nm	610 nm	613 nm	350 mA	43 lm	2.2 V	56 lm/W	9073 Metric	3529	0.181 "	4.6 mm	700 mA	Red-Orange
Cree LED XRCRDO-L1-0000-00K02	Surface Mount	90 °	SMD	15 °C/W	7 mm	0.276 in	9 mm	0.354 "	615 nm	610 nm	613 nm	350 mA	33 lm	2.2 V	43 lm/W	9073 Metric	3529	0.181 "	4.6 mm	700 mA	Red-Orange
Cree LED XRCRDO-L1-0000-00M01	Surface Mount	90 °	SMD	15 °C/W	7 mm	0.276 in	9 mm	0.354 "	620 nm	610 nm		350 mA	43 lm	2.2 V	56 lm/W	9073 Metric	3529	0.181 "	4.6 mm	700 mA	Red-Orange
Cree LED XRCRDO-L1-R250-00M02	Surface Mount	90 °	SMD	15 °C/W	7 mm	0.276 in	9 mm	0.354 "	615 nm	610 nm	613 nm	350 mA	43 lm	2.2 V	56 lm/W	9073 Metric	3529	0.181 "	4.6 mm	700 mA	Red-Orange
Cree LED XRCRDO-L1-R250-00M03	Surface Mount	90 °	SMD	15 °C/W	7 mm	0.276 in	9 mm	0.354 "			618 nm	350 mA	43 lm	2.2 V	56 lm/W	9073 Metric	3529	0.181 "	4.6 mm	700 mA	Red-Orange
Cree LED XRCRDO-L1-R250-00K03	Surface Mount	90 °	SMD	15 °C/W	7 mm	0.276 in	9 mm	0.354 "	615 nm	610 nm	613 nm	350 mA	33 lm	2.2 V	43 lm/W	9073 Metric	3529	0.181 "	4.6 mm	700 mA	Red-Orange
