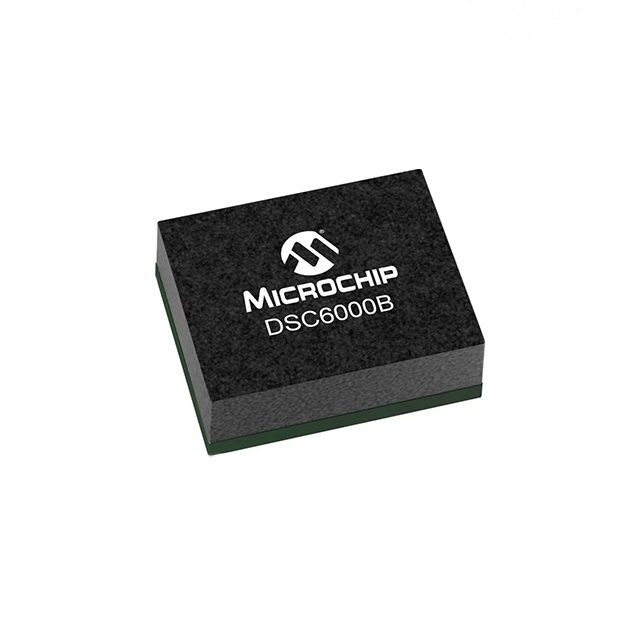

DSC6111BI2B-033.3330
ActiveMicrochip Technology
MEMS OSC., ULTRA LOW POWER, LVCM
DSC6111BI2B-033.3330
ActiveMicrochip Technology
MEMS OSC., ULTRA LOW POWER, LVCM
Description
General part information
DSC6111BI2B-033.3330
33.333 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-VDFN
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC6111BI2B-033.3330 |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) | 1.5 µA |
| Current - Supply (Max) | 3 mA |
| Frequency | 33.333 MHz |
| Frequency Stability | 25 ppm |
| Function | Standby (Power Down) |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-VDFN |
| Package Length | 5 mm |
| Package Name | 4-VDFN |
| Package Width | 3.2 mm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.63 V, 3.3 V |
| Voltage - Supply (Minimum) | 1.71 V, 1.8 V |
