74AHC1G125GV-Q100125

Active

NXP USA Inc.

BUS DRIVER, AHC/VHC/H/U/V SERIES

Search across all available documentation for this part.

Active

NXP USA Inc.

BUS DRIVER, AHC/VHC/H/U/V SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	74AHC1G125GV-Q100125

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Grade	Automotive
Logic Type	Buffer, Non-Inverting
Mounting Type	Surface Mount
Number of Bits per Element	1
Number of Elements	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State

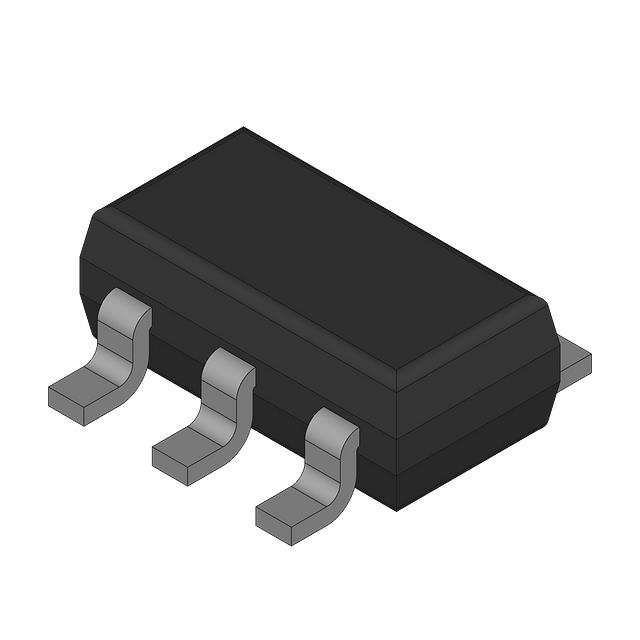

Package / Case	SC-74A, SOT-753
Qualification	AEC-Q100
Supplier Device Package	5-TSOP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2 V

BUS DRIVER, AHC/VHC/H/U/V SERIES

Part	Grade	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Number of Elements	Voltage - Supply [Max]	Voltage - Supply [Min]	Logic Type	Mounting Type	Output Type	Number of Bits per Element
NXP USA Inc. 74AHC1G125GV-Q100125	Automotive	SC-74A, SOT-753	-40 °C	125 °C	AEC-Q100	8 mA	8 mA	5-TSOP	1	5.5 V	2 V	Buffer, Non-Inverting	Surface Mount	3-State	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buffer, Non-Inverting 1 Element 1 Bit per Element 3-State Output 5-TSOP
