264-106
ActiveWAGO Corporation

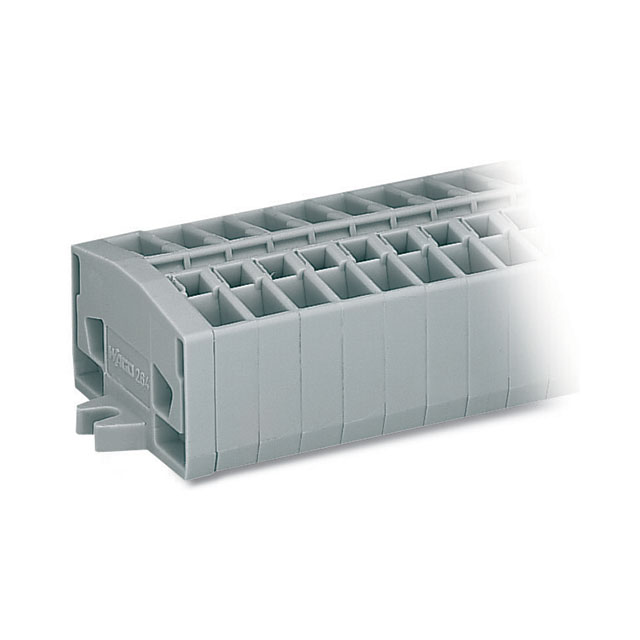

2-CONDUCTOR TERMINAL STRIP; 6-PO
264-106
ActiveWAGO Corporation
2-CONDUCTOR TERMINAL STRIP; 6-PO
Description
General part information
264-106
12 Position Terminal Block Gray Middle 52.0mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 264-106 |
|---|---|
| Current - IEC | 24 A |
| Height (Max) | 0.87 in |
| Housing Color | Gray |
| Length | 1.26 in |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Direct Mount |
| Number of Levels | 1 |
| Number of Positions | 12 |
| Stripping Length (Max) | 9 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 52 mm |
| Termination Style | Push In, Spring |
| Type | Middle |
| Voltage - IEC | 800 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
