SC75-471
ActiveSignal Transformer
FIXED IND 470UH 460MA 1.96OHM SM
SC75-471
ActiveSignal Transformer
FIXED IND 470UH 460MA 1.96OHM SM
Description
General part information
SC75-471

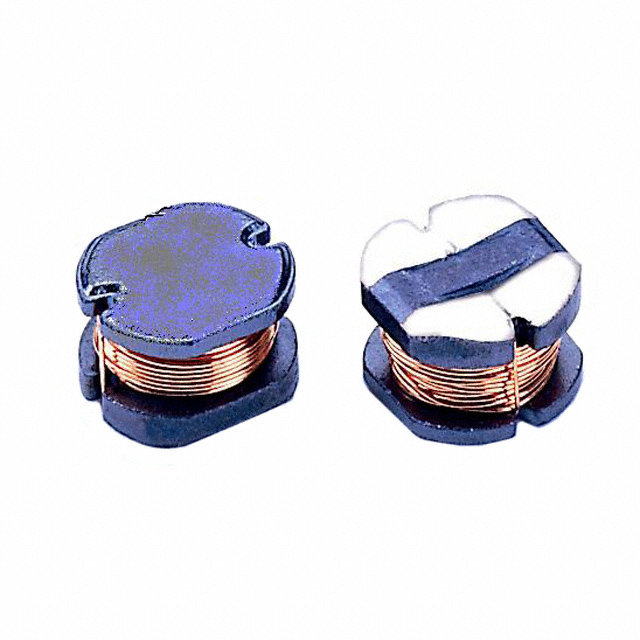

470 µH Unshielded Wirewound Inductor 460 mA 1.96Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC75-471 |
|---|---|
| Current - Saturation (Isat) | 0.34 mA |
| Current Rating | 460 mA |
| DC Resistance (DCR) (Max) | 1.96 Ohm |
| Height - Seated (Max) | 0.209 in |
| Inductance | 0.47 mH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.319 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 20 % |
| Type | Wirewound |
