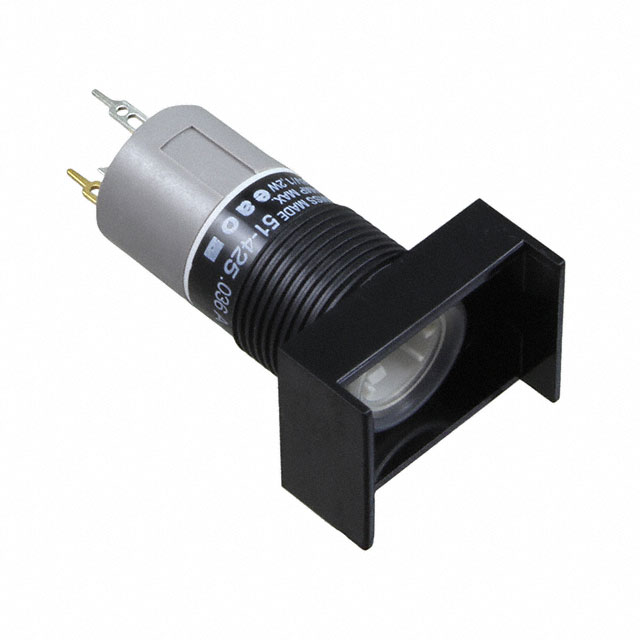

51-425.036A
ActiveEAO
ILLUMINATED PUSHBUTTON MOM LL 1N
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
51-425.036A
ActiveEAO
ILLUMINATED PUSHBUTTON MOM LL 1N
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 51-425.036A | 51-425 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | - | Rectangular, Button (Not Included) |
| Circuit | - | SPST-NO |
| Current Rating (Amps) | - | 100 mA |
| Ingress Protection | - | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | - | 5000000 Cycles |
| Mounting Type | - | Panel Mount, Front |
| Operating Temperature | - | 55 °C |
| Operating Temperature | - | -25 °C |
| Panel Cutout Dimensions | - | 16 mm |
| Switch Function | - | Off-Mom |
| Termination Style | - | PC Pin, Solder Lug |
| Type | - | Standard |
| Voltage Rating - AC | - | 42 V |
| Voltage Rating - DC | - | 42 V |
51-425 Series
PUSHBUTTON SWITCH, 51 SERIES, 16.2 MM, SPST-NO, MOMENTARY, RECTANGULAR
| Part | Ingress Protection | Circuit | Actuator Marking | Mechanical Life | Switch Function | Current Rating (Amps) | Type | Termination Style | Mounting Type | Panel Cutout Dimensions [diameter] | Actuator Type | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 51-425.036 | IP65 - Dust Tight, Water Resistant | SPST-NO | No Marking | 5000000 Cycles | Off-Mom | 100 mA | Standard | PC Pin, Solder Lug | Panel Mount, Front | 16 mm | Rectangular, Button (Not Included) | 42 V | 42 V | 55 °C | -25 °C |
EAO 51-425.036A | No Marking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 23.88 | |
| 10 | $ 20.60 | |||
| 25 | $ 19.42 | |||
| 50 | $ 18.57 | |||
| 100 | $ 17.76 | |||
| 250 | $ 16.74 | |||
| 500 | $ 16.01 | |||
Description
General part information
51-425 Series
Pushbutton Switch
