FMC0817315-06
ActiveFairview Microwave
CBL ASSY BNCPLUG-MCXPLUG 6
FMC0817315-06
ActiveFairview Microwave
CBL ASSY BNCPLUG-MCXPLUG 6
Description
General part information
FMC0817315-06

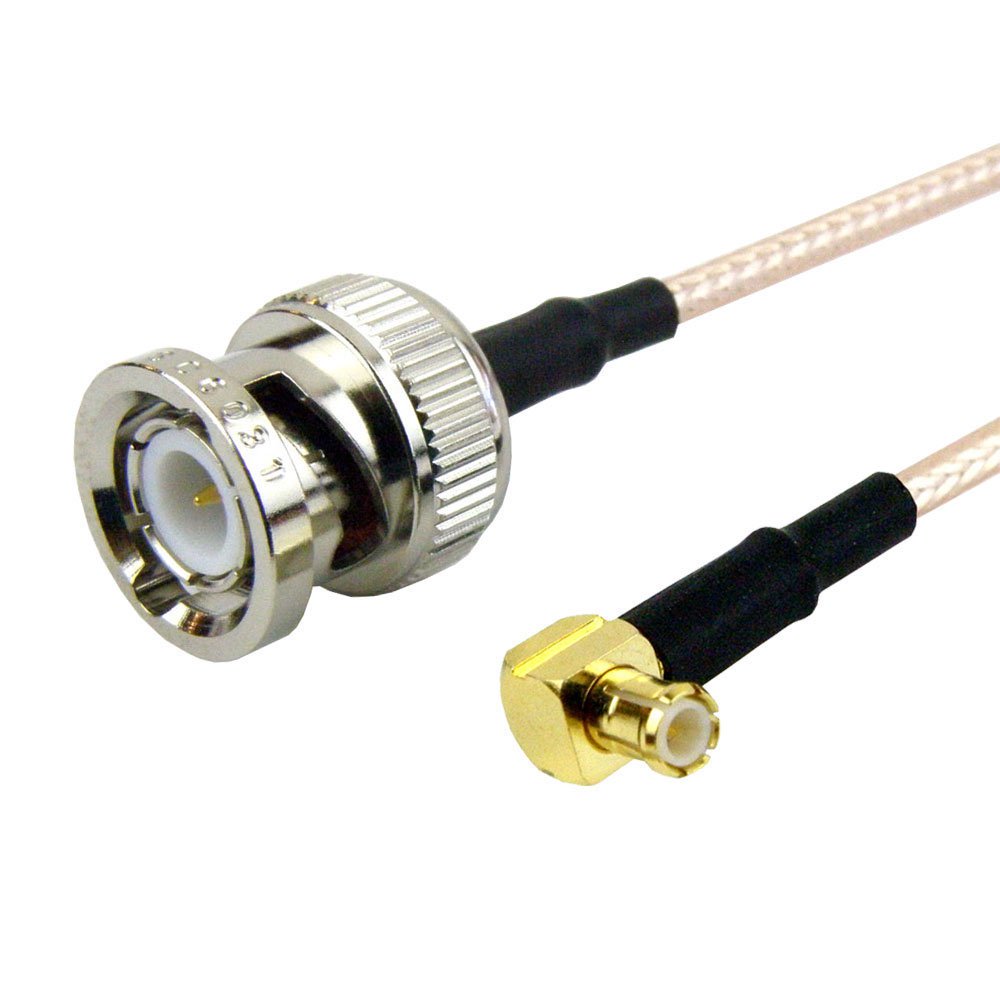

Cable Assembly Coaxial BNC to MCX RG-316 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC0817315-06 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 0.5 ft |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | MCX, BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
