Description
General part information
P1CA-SAFRPUFP-U137-6.5

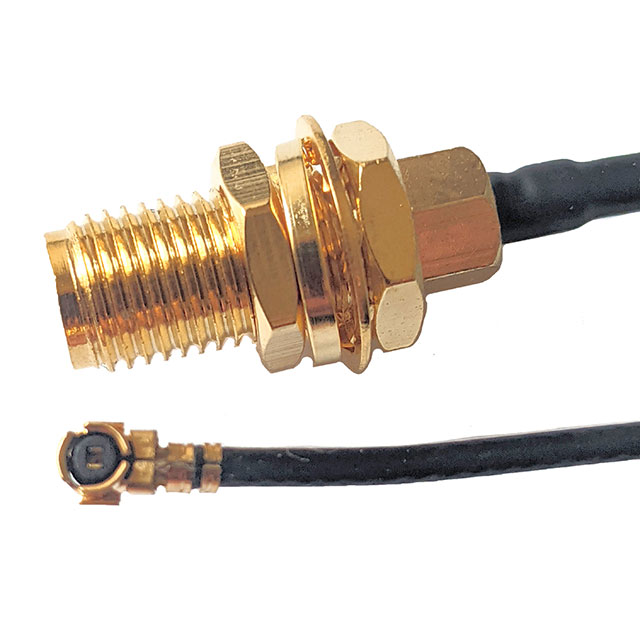

Cable Assembly Coaxial U.FL (UMCC) to RP-SMA 1.3mm Flex 6.496" (165.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | P1CA-SAFRPUFP-U137-6.5 |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | U.FL (UMCC) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 1.3 mm |
| Cable Impedance | 50 Ohms |
| Cable Type | 1.3mm Flex, Flex |
| Cable Type Size | 1.3 mm |
| Frequency - Max | 6000 MHz |
| Length | 6.496 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | RP-SMA, U.FL (UMCC) |
