1SNK508150R0000
ActiveABB Control

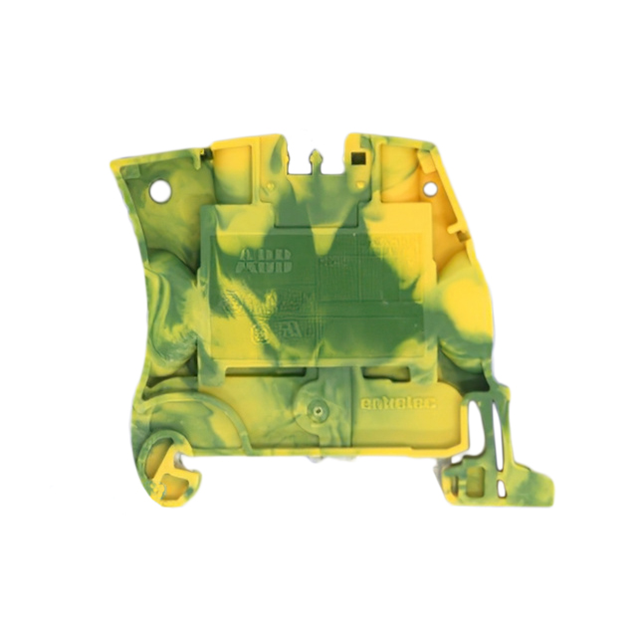

GROUND TERMINAL BLOCK, 8MM, GRN/
1SNK508150R0000
ActiveABB Control
GROUND TERMINAL BLOCK, 8MM, GRN/
Description
General part information
1SNK508150R0000
Terminal Block Connector 2 Position Ground, Earth Green, Yellow 6-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SNK508150R0000 |
|---|---|
| Color | Yellow, Green |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 12 mm |
| Terminal Width | 8 mm |
| Termination Style | Screw |
| Type | Earth, Ground |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 6 AWG |
| Wire Gauge or Range - mm² (Maximum) | 10 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
