WEH002004ALPP5N00100

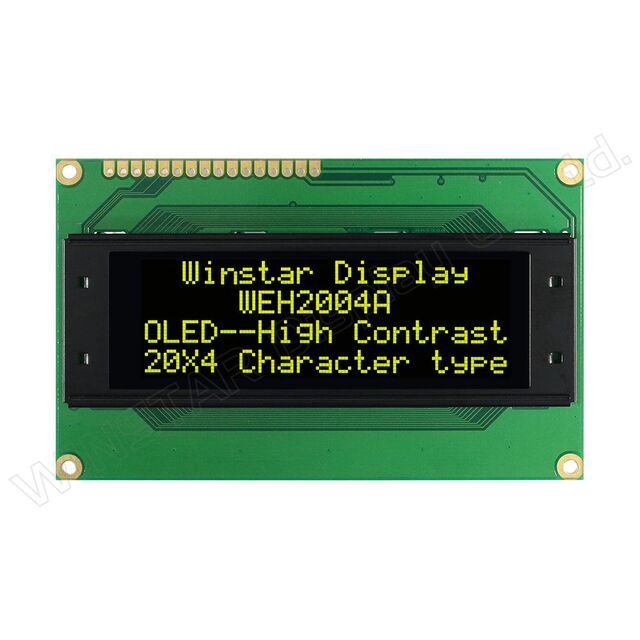

Character Display Module Passive 5 x 8 Dots OLED Without Backlight 98.00mm x 60.00mm x 10.00mm
Technical Specifications
Parameters and characteristics for this part
| Specification | WEH002004ALPP5N00100 |
|---|---|
| Background Color | Yellow |
| Backlight | Without Backlight |
| Character Height (Dots) | 8 Dots |
| Character Width (Dots) | 5 Dots |
| Controller Type | WS0010-TX |
| Display Columns | 20 |
| Display Mode | Passive |
| Display Rows | 4 |
| Display Type | OLED |
| Dot Size Height | 0.55 mm |
| Dot Size Width | 0.54 mm |
| Number of Characters | 80 characters |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Height | 10 mm |
| Outline Length | 98 mm |
| Outline Width | 60 mm |
| Viewing Area Length | 77 mm |
| Viewing Area Width | 25.2 mm |
| Voltage - Supply (Maximum) | 5.3 V |
| Voltage - Supply (Minimum) | 4.8 V |
