FD-24AU
ActiveTDK Corporation

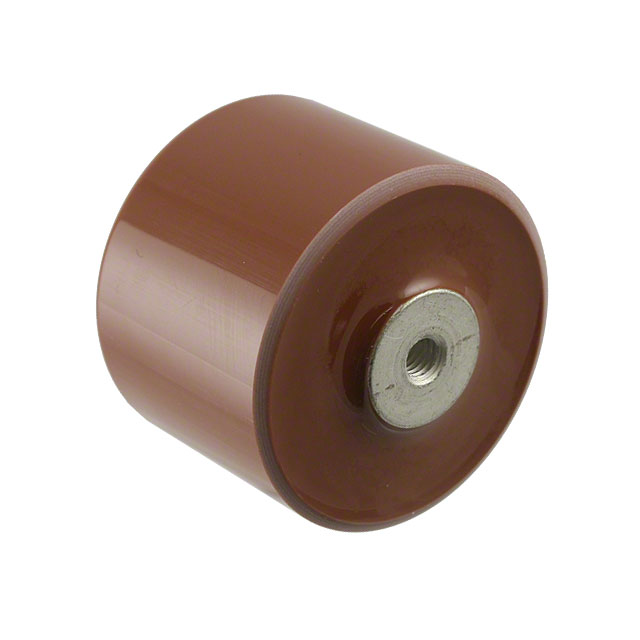

CAP CER 500PF 20KV Y5P DISK
FD-24AU
ActiveTDK Corporation
CAP CER 500PF 20KV Y5P DISK
Description
General part information
FD-24AU
500 pF ±10% 20000V (20kV) Ceramic Capacitor Y5P (B) Disk, Metal Fitting - Threaded
Technical Specifications
Parameters and characteristics for this part
| Specification | FD-24AU |
|---|---|
| Applications | General Purpose |
| Capacitance | 500 pF |
| Features | High Voltage |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Disk, Metal Fitting - Threaded |
| Size / Dimension Diameter | 1.575 in |
| Size / Dimension Length | 1.299 in |
| Temperature Coefficient | Y5P (B) |
| Tolerance | 10 % |
| Voltage - Rated | 20 kV |
