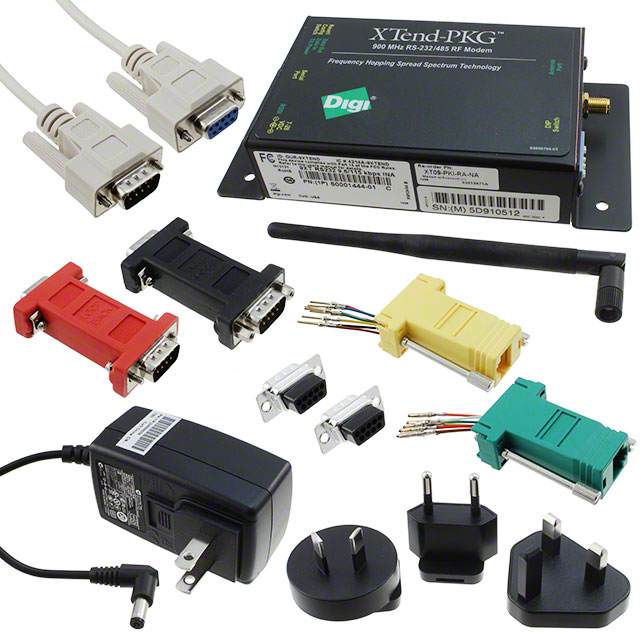

XT09-PKI-RA-NA

Obsolete

Digi

MODEM RF 900MHZ 1W RS232/485 INT

Search across all available documentation for this part.

Obsolete

Digi

MODEM RF 900MHZ 1W RS232/485 INT

Technical Specifications

Parameters and characteristics commom to parts in this series

MODEM RF 900MHZ 1W RS232/485 INT

Part	Interface	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Data Rate (Max) [Max]	Modulation or Protocol	Frequency	Applications	Power - Output	Frequency [Min]	Frequency [Max]
Digi XT09-PKI-R-NA	RS-232, RS-485	-110 dBm	28 V	7 V	Modem, Transceiver	10 kbps	FHSS, FSK	900 MHz
Digi XT09-PKI-RA	RS-232, RS-485	-110 dBm	28 V	7 V	Modem, Transceiver	115.2 kbps	FHSS, FSK	900 MHz
Digi XT09-PKT-R	RS-232				Modem, Transceiver			900 MHz
Digi XT09-PKC-UA	USB	-110 dBm	28 V	7 V	Modem, Transceiver	115 kbps	FSK		General Purpose	1 W	902 MHz	928 MHz
Digi XT09-PKI-R	DB9	-110 dBm	28 V	7 V		115.2 kbps	ISM		General Purpose	30 dBm	902 MHz	928 MHz
Digi XT09-PKI-E	RJ-45 Ethernet	-110 dBm	28 V	7 V	Modem, Transceiver	10 kbps	FHSS, FSK	900 MHz
Digi XT09-PKI-RA-NA	RS-232, RS-485	-110 dBm	28 V	7 V	Modem, Transceiver	10 kbps	FHSS, FSK	900 MHz
Digi XT09-PKD-RD	RS-232, RS-422/485	-110 dBm			Modem, Transceiver		FHSS, FSK		General Purpose		902 MHz	928 MHz
Digi XT09-PKI-EA	RJ-45 Ethernet	-110 dBm	28 V	7 V	Modem, Transceiver	10 kbps	FHSS, FSK	900 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transceiver, Modem 900MHz FHSS, FSK RS-232, RS-485 10kbps

Technical documentation and resources

No documents available
