Technical Specifications
Parameters and characteristics for this part
| Specification | 806-025-07ZL22-5DC |
|---|---|
| Applications | Aerospace |
| Backshell Material, Plating | Aluminum |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating | 5 A |
| Fastening Type | Threaded |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 5 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | C |
| Shell Finish | Passivated |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 22 mm |
| Shell Size - Insert Width | 5 mm |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 3999.99 | 30d+ |
CAD
3D models and CAD resources for this part
Description
General part information

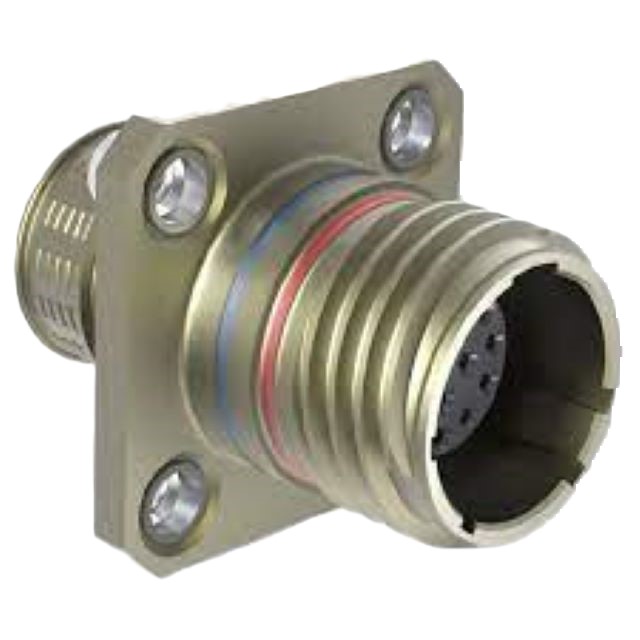

806-025-07ZL22-5DC
5 Position Circular Connector Receptacle, Female Sockets Solder
