RG213-SMRP-NM(QTY:150ft)
ActiveMcGill Microwave Systems

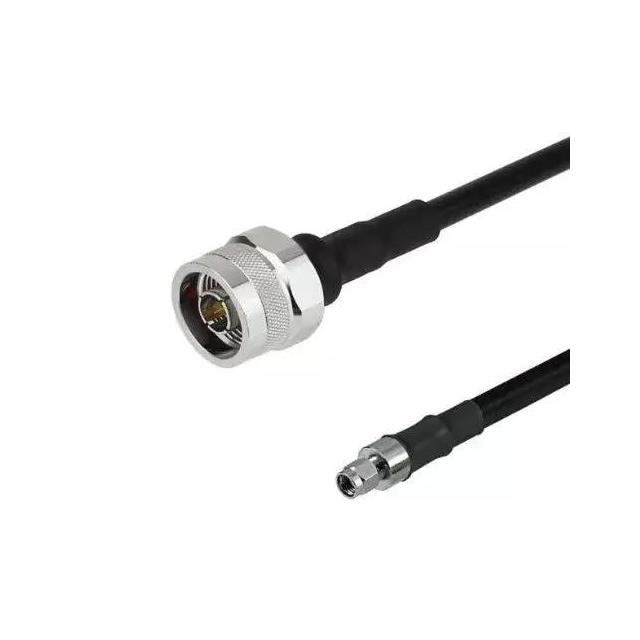

RG213 CABLE ASSY 150FT SMRP TO N
RG213-SMRP-NM(QTY:150ft)
ActiveMcGill Microwave Systems
RG213 CABLE ASSY 150FT SMRP TO N
Description
General part information
RG213-SMRP-NM(QTY:150ft)
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | RG213-SMRP-NM(QTY:150ft) |
|---|---|
| 1st Connector | RP-SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 213, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 3 GHz |
| Length | 45.72 m |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA, N-Type |
