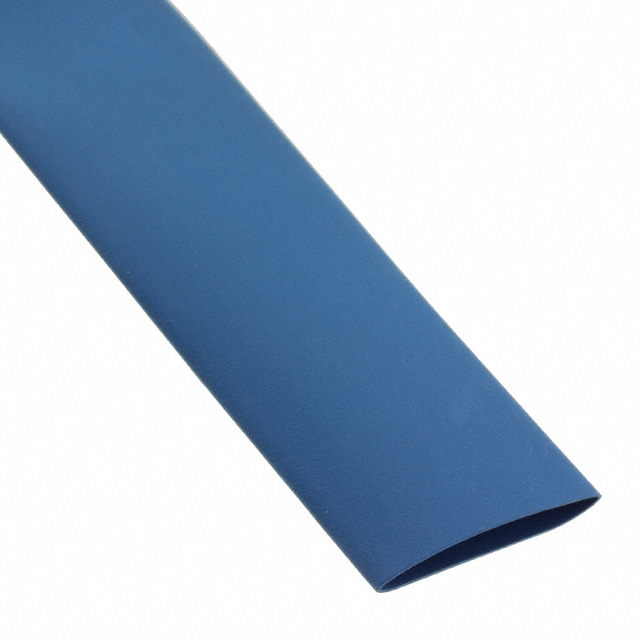

Specification	495754

Color	Blue
Features	Flame Retardant
Inner Diameter - Recovered	0.492 in
Inner Diameter - Supplied	1 in
Length	16.4 ft
Material	Irradiated, Polyolefin (PO)
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Recovered Wall Thickness	0.035 in
Shrink Temperature	70 °C
Shrinkage Ratio	2
Type	Flexible, Tubing

- Series

...

Part	Material Flammability Rating	Color	Panel Cutout Shape	Panel Cutout Diameter	Panel Thickness	For Use With/Related Products	Diameter - Inside	Buring, Grommet Type	Material	Inner Diameter - Supplied	Shrink Temperature	Inner Diameter - Recovered	Type	Length	Recovered Wall Thickness	Features	Shrinkage Ratio	Operating Temperature (Max)	Operating Temperature (Min)	Width	Opening Size	Adhesive	Mounting Type	Height	Length - Approximate	Bundle Diameter	Length - Actual	Tensile Strength	Wire/Cable Tie Type	For Use With/Related Products Maximum Width	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height
Essentra Components HG-14	UL94 HB	Black	Circular	0.99 "	0.063 in	Cable Wires	0.86 in	Grommet	Thermoplastic Elastomer (TPE)
Essentra Components 495819		White							Irradiated Polyolefin (PO)	0.25 in	70 °C	0.125 in	Flexible Tubing	16.4 ft	0.022 in	Flame Retardant	2	125 °C	-55 °C
Essentra Components 495745		Blue							Irradiated Polyolefin (PO)	0.046 in	70 °C	0.023 in	Flexible Tubing	32.8 ft	0.013 in	Flame Retardant	2	125 °C	-55 °C
Essentra Components 495709		Red							Irradiated Polyolefin (PO)	0.046 in	70 °C	0.023 in	Flexible Tubing	492.1 ft	0.013 in	Flame Retardant	2	125 °C	-55 °C
Essentra Components ASK-6		Silver							Aluminum				Bendable Clip	0.74 in						0.62 in	0.375 in	Polyurethane Based (RMS-99)	Adhesive	0.563 in
Essentra Components 1293375		Black							Polypropylene (PP)											0.315 in			Free Hanging (In-Line)		21.75 in	6.3 in	1.804 ft	51 lbs	Locking Standard
Essentra Components HG-3	UL94 HB	Black	Circular	0.305 "	0.032 in	Cable Wires	0.188 in	Grommet	Thermoplastic Elastomer (TPE)
Essentra Components 495692		Black							Irradiated Polyolefin (PO)	0.374 in	70 °C	0.187 in	Flexible Tubing	246.1 ft	0.022 in	Flame Retardant	2	125 °C	-55 °C
Essentra Components 550259		Black							Nylon 6.6											0.189 in			Edge Clip		7.75 in		0.656 ft		Locking Standard
Essentra Components 550248		Black				Cable Ties Cable Ties up to 0.189" (4.8mm) Width			Nylon 6.6				Single Opening										Edge Mount							0.189 in	0.59 in	0.79 in	0.76 in
