SC53LC-100
ActiveSignal Transformer
FIXED IND 10UH 2A 105 MOHM SMD
SC53LC-100
ActiveSignal Transformer
FIXED IND 10UH 2A 105 MOHM SMD
Description
General part information
SC53LC-100

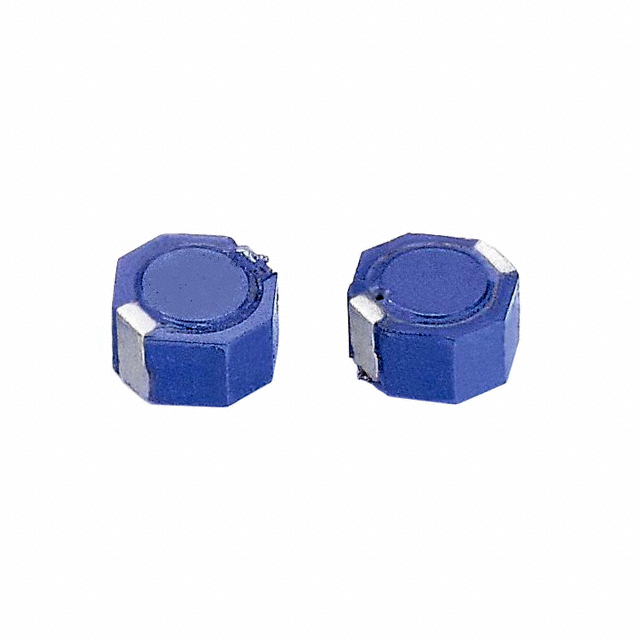

10 µH Shielded Inductor 2 A 105mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC53LC-100 |
|---|---|
| Current - Saturation (Isat) | 1.33 A |
| Current Rating | 2 A |
| DC Resistance (DCR) (Max) | 105 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.209 in |
| Size / Dimension Width | 0.209 in |
| Tolerance | 20 % |
