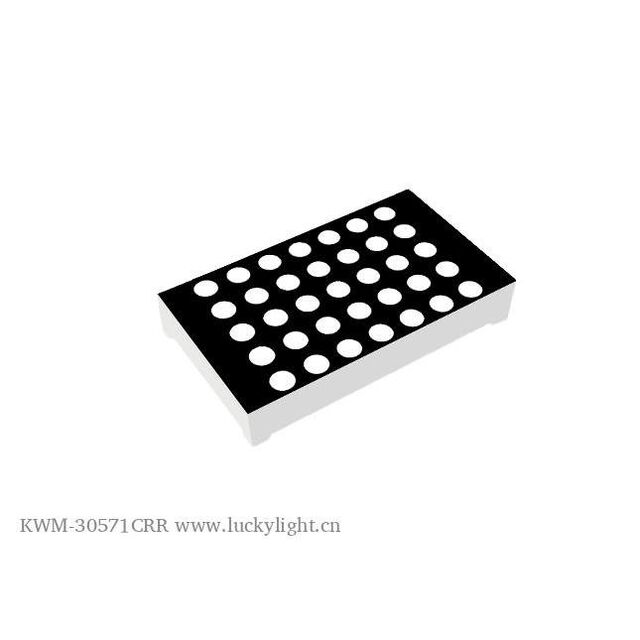

KWM-30571CRR
ActiveLuckylight
1.54INCH, DEEP RED, 57 DOT MATR
KWM-30571CRR
ActiveLuckylight
1.54INCH, DEEP RED, 57 DOT MATR
Description
General part information
KWM-30571CRR
Dot Matrix Display Module 5 x 7 Common Cathode Row, Common Anode Column Red 2V Parallel 1.54" L x 0.90" W x 0.32" H (39.00mm x 22.90mm x 8.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | KWM-30571CRR |
|---|---|
| Color | Red |
| Columns | 7 |
| Configuration | 5, 7, 5 x 7 |
| Interface | Parallel |
| Internal Connection | Common Cathode Row, Common Anode Column |
| Millicandela Rating (Max) | 18 mcd |
| Millicandela Rating (Min) | 9 mcd |
| Rows | 5 |
| Size / Dimension Height | 0.32 in |
| Size / Dimension Length | 1.54 in |
| Size / Dimension Width | 0.9 in |
| Voltage - Forward (Vf) (Typ) | 2 V |
