Description
General part information

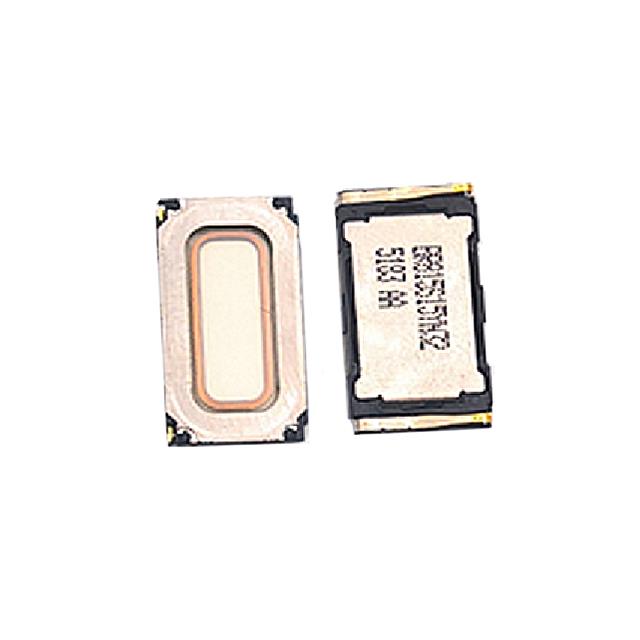

LR1508L025YN8WP
8 Ohms General Purpose Speaker 500 mW 850 Hz ~ 20 kHz Top Rectangular
Technical Specifications
Parameters and characteristics for this part
| Specification | LR1508L025YN8WP |
|---|---|
| Efficiency - dBA | 71.5 dBA |
| Efficiency - Testing Length | 1 m |
| Efficiency - Testing Power | 1 W |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 850 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 850 Hz |
| Height - Seated (Max) | 0.098 in |
| Impedance | 8 Ohm |
| Ingress Protection | IPX8 |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max | 1 VA |
| Power - Rated | 500 mW |
| Shape | Rectangular |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.315 in |
| Technology | Magnetic |
| Termination | Spring Contacts |
| Type | General Purpose |
