RG213-TM-TF(QTY:30M)
ActiveMcGill Microwave Systems

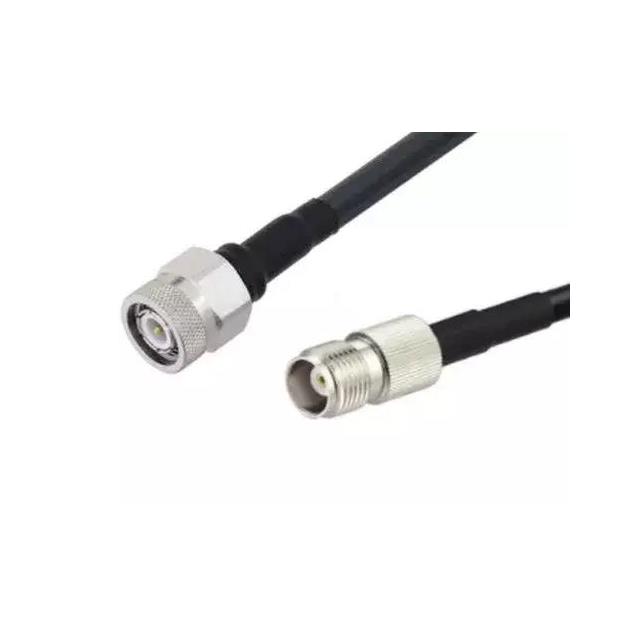

RG213 CABLE ASSY 30M TNC TO TNCF
RG213-TM-TF(QTY:30M)
ActiveMcGill Microwave Systems
RG213 CABLE ASSY 30M TNC TO TNCF
Description
General part information
RG213-TM-TF(QTY:30M)
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | RG213-TM-TF(QTY:30M) |
|---|---|
| 1st Connector | TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 213, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 3 GHz |
| Length | 98.425 ft |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | TNC |
