Description
General part information

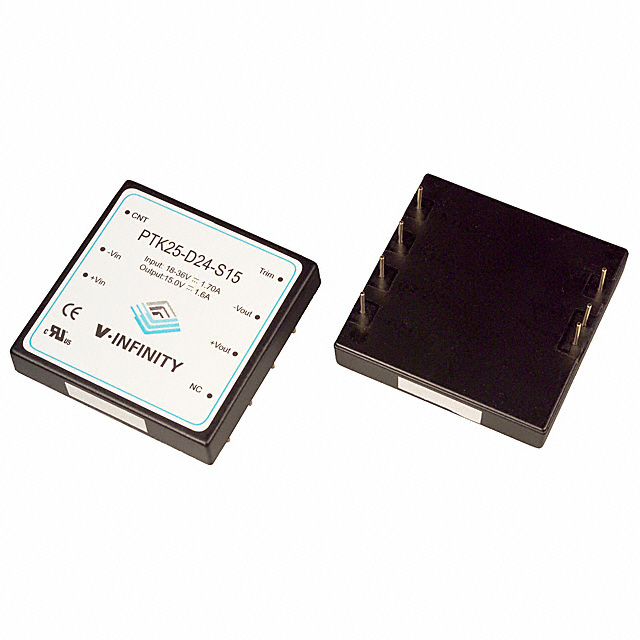

PTK25-D24-S15
Isolated Module DC DC Converter 1 Output 15V 1.6A 18V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PTK25-D24-S15 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 1.6 A |
| Features | OCP, OVP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 71 °C |
| Operating Temperature (Min) | -20 °C |
| Package Leads | 7 Leads |
| Package Name | 8-DIP Module |
| Power (Watts) | 25 W |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 2 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 15 V |
